Electric trailer maneuvering trolley MINI MOVER GEN 3 PLUS 2722kg

Electric trailer maneuvering trolley MINI MOVER GEN 3 PLUS 2722kg

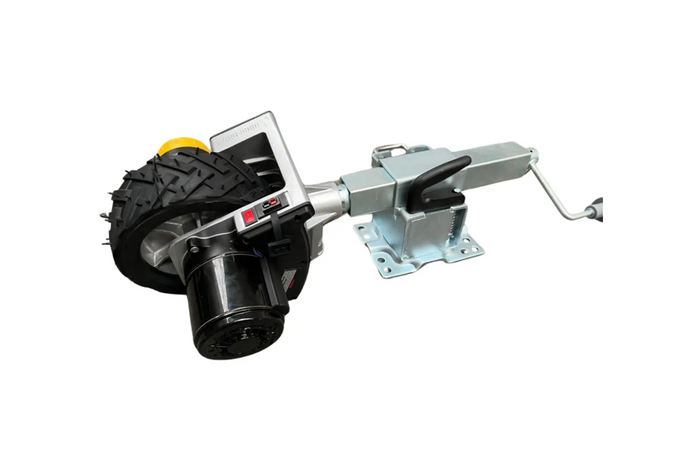

The MINI MOVER GEN 3 PLUS from NOVAWINCH is an electric trailer maneuvering drive that replaces the jockey wheel. It allows you to precisely move and position your trailer effortlessly, without using your car. It's perfect for parking, positioning your caravan on the pitch, moving it into a garage, driveway, or other tight spaces. The PLUS version features a swivel mount that allows you to easily rotate the device 90°. This allows the mover to be mounted on the trailer while driving.

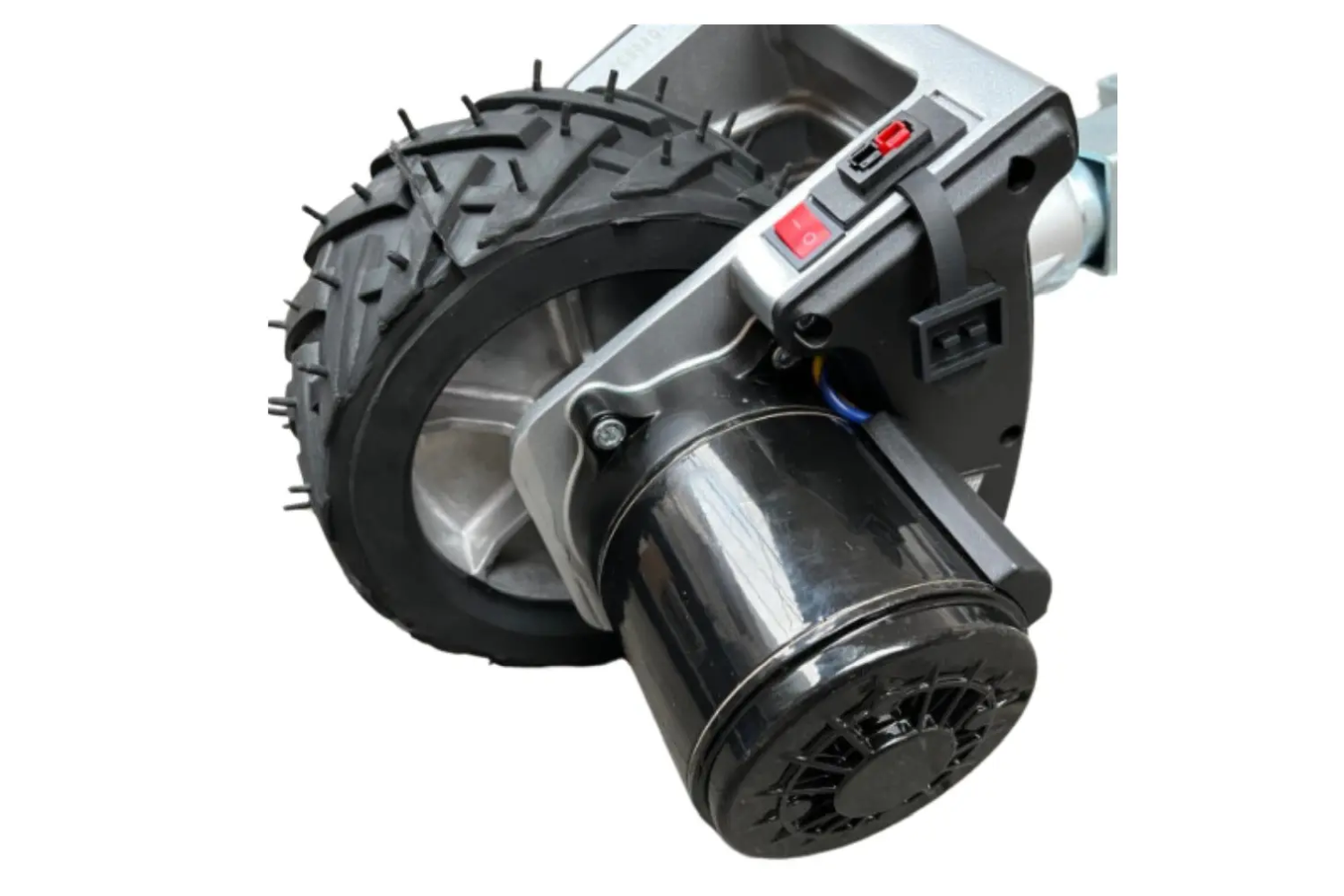

The drive moves trailers weighing up to 2722 kg on flat ground and handles slopes up to 7° when fully loaded. A 12V DC, 550 W motor with a 494:1 gear ratio ensures smooth operation at a speed of 7 m/min, making it easy to precisely position the trailer. The mover moves forward and reverse , and the steering arm allows 360° steering . The 8" (approx. 20 cm) wheel has a puncture-resistant tire with an all-terrain tread that grips gravel, grass, and paved surfaces well. The brake engages automatically, preventing the trailer from rolling away uncontrollably.

The device mounts to the trailer frame with a clamp or through-bolts. It fits most trailers with a frame height of approximately 33 to 76 cm above the ground. Power is supplied by a 12V battery or jump starter, connected via 137 cm cables.

Parameters:

• maximum trailer weight: 2722 kg (on flat ground)
• maximum wheel load (drawbar load): 498 kg
• maximum slope: 7°
• power supply: 12 V DC
• motor power: 550 W (0.7 HP)
• current consumption: 50 A
• gear ratio: 494:1
• maneuvering speed: 7 m/min
• working direction: forward and backward
• control: control arm, 360° wheel rotation
• brake: automatic
• wheel: 8" (approx. 20 cm), puncture-resistant tire, off-road tread

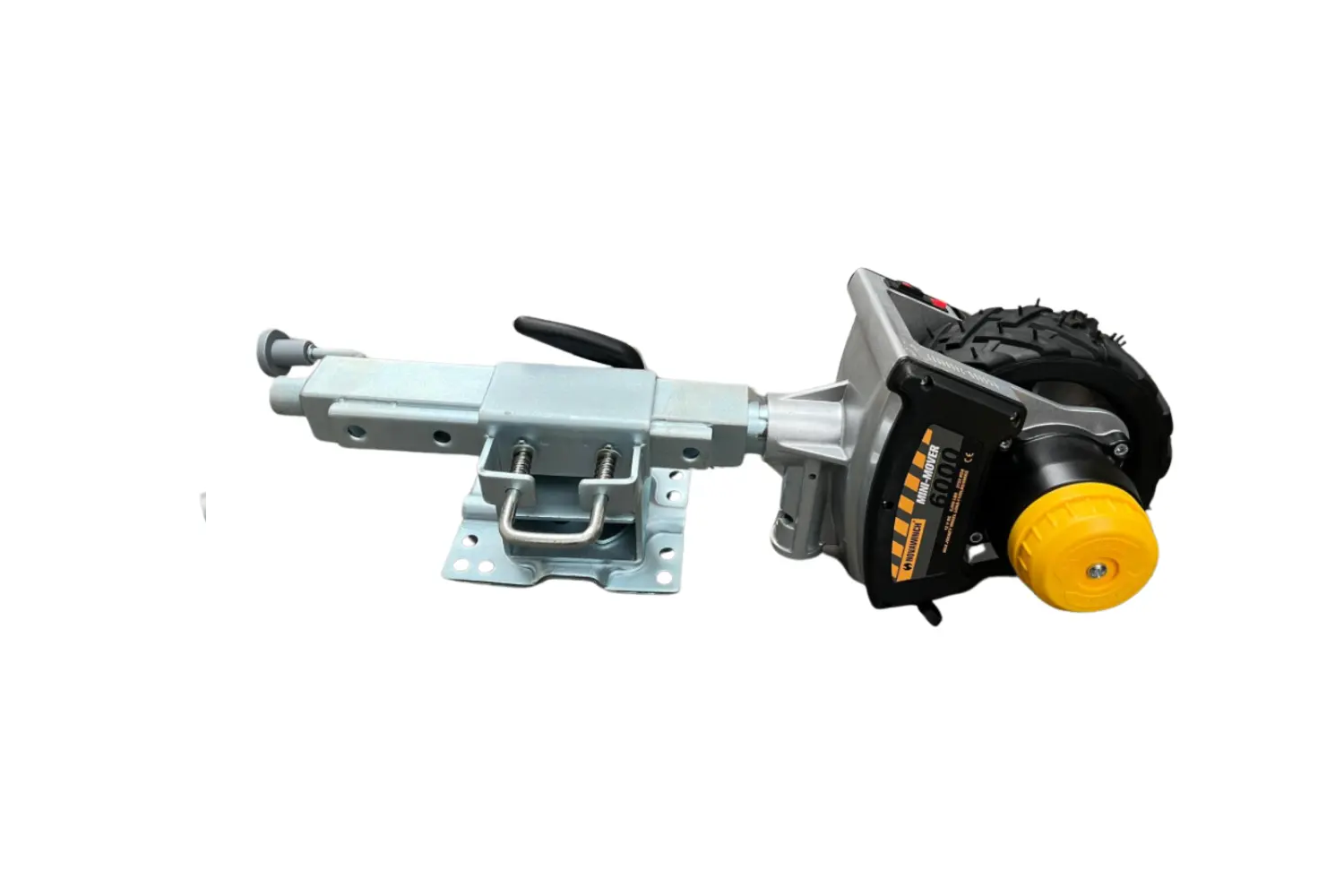

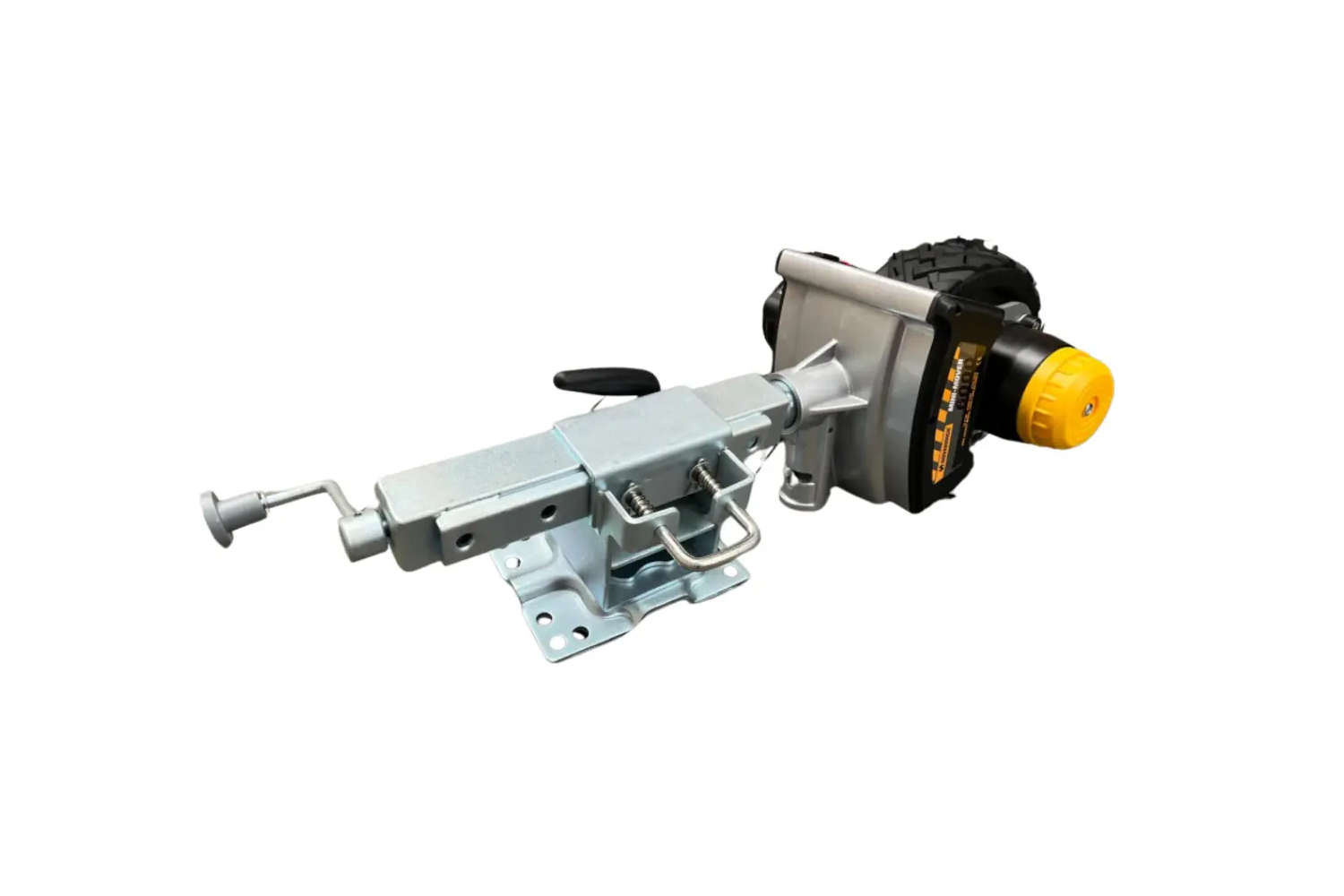

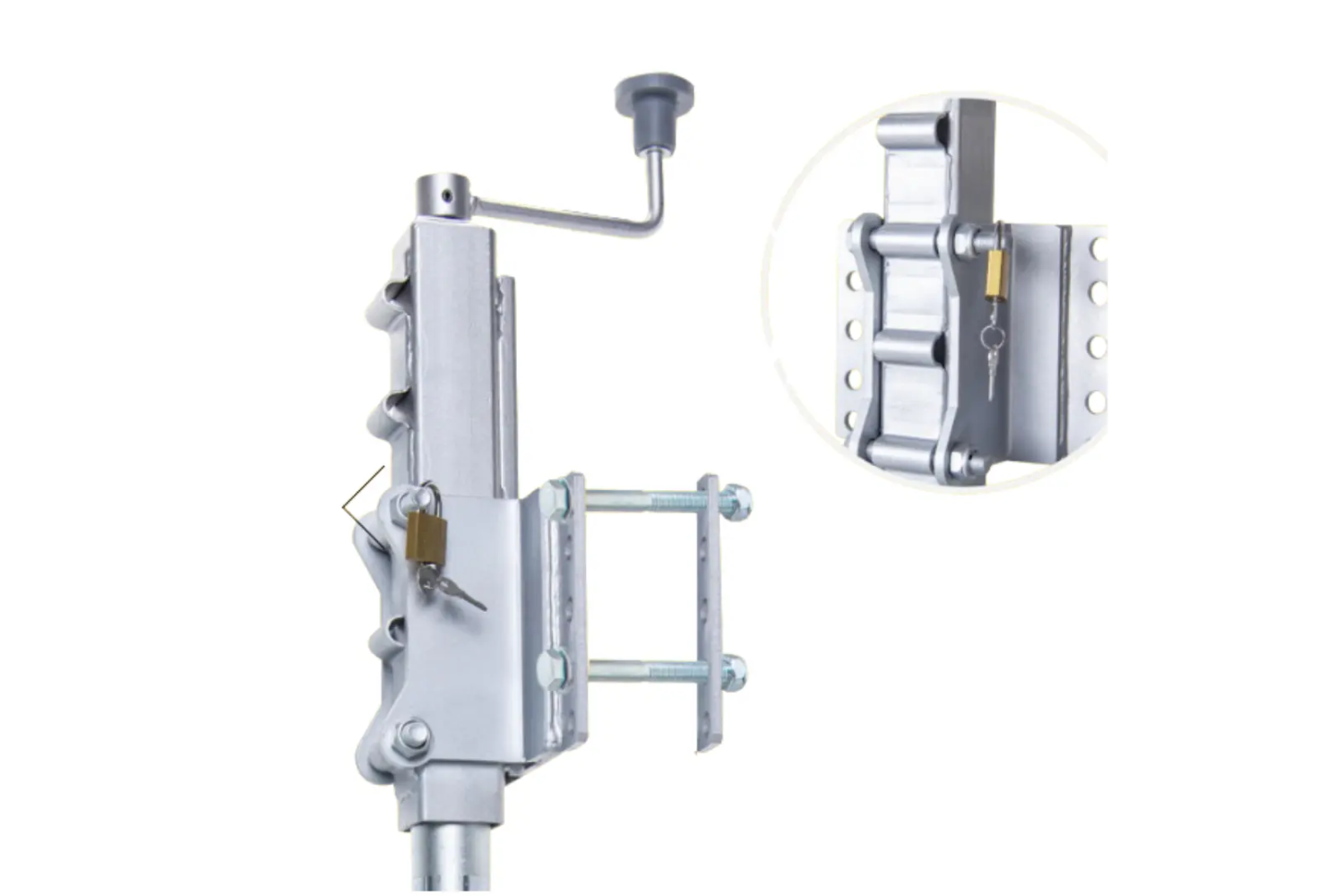

• mounting rotation: 90° , can be left on the trailer while driving

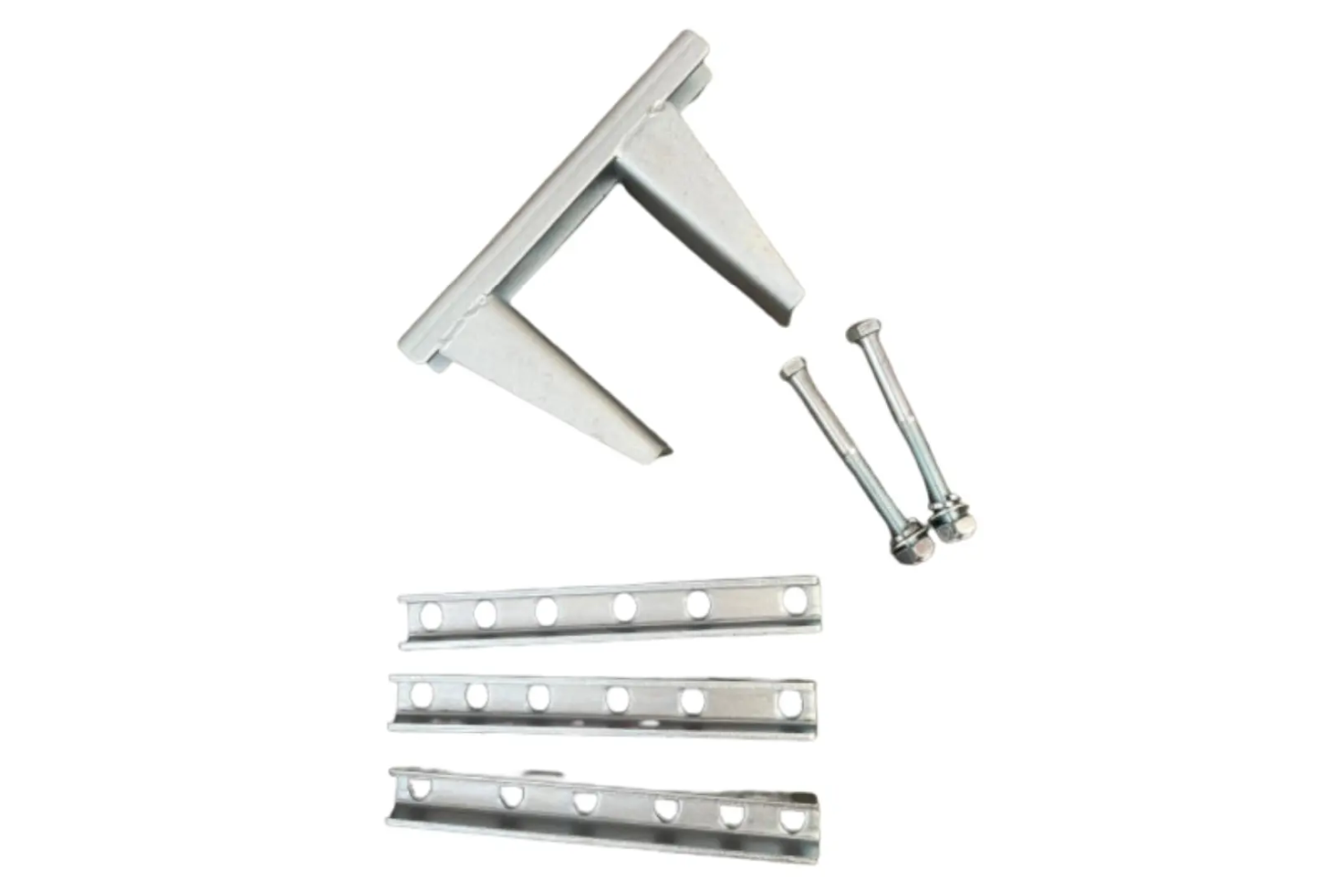

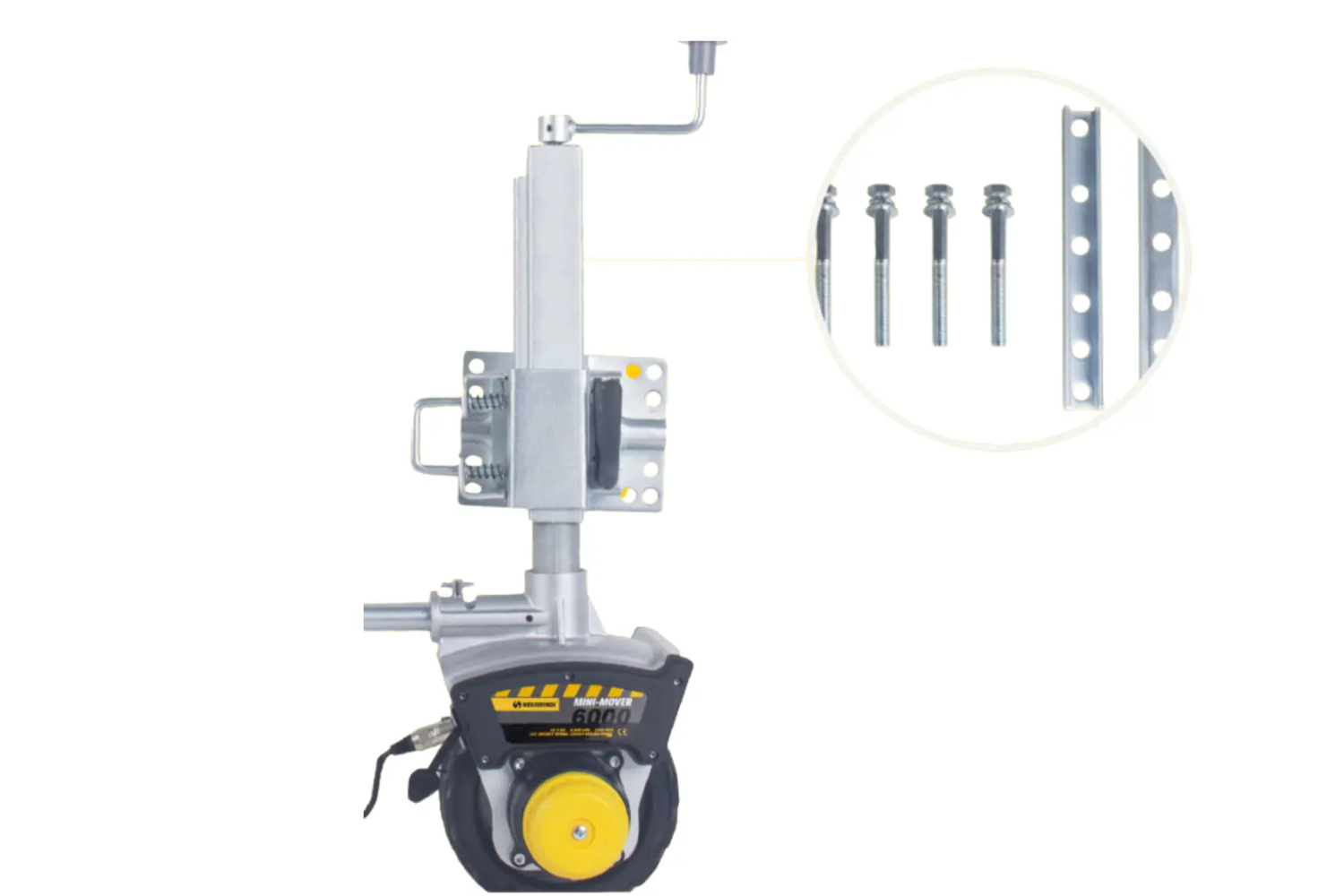

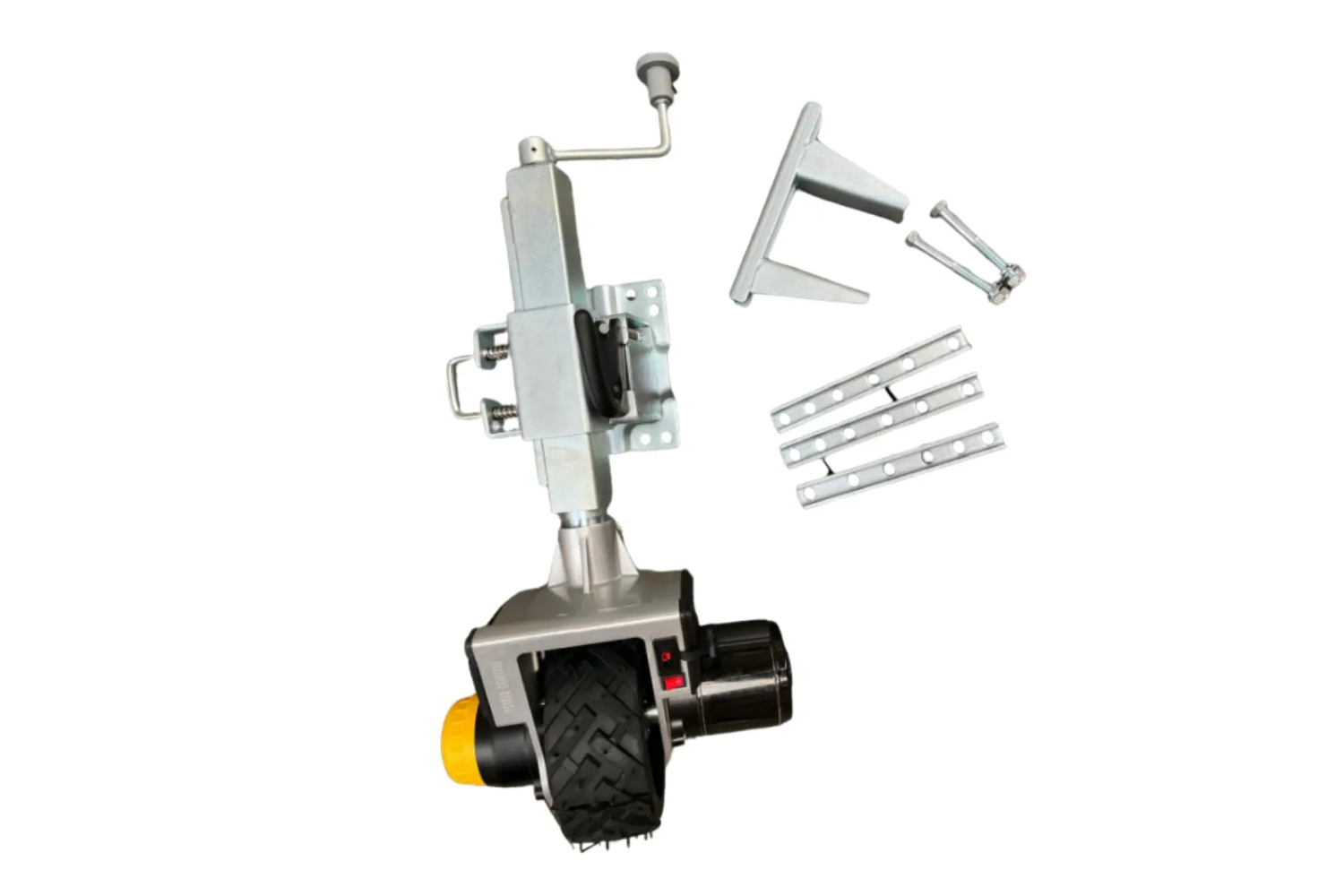

• mounting: clamp or through bolts to the trailer frame
• height of the trailer frame above the ground: from approx. 33 cm to approx. 76 cm
• power cable length: 137 cm
• security: anti-theft lock, 2 keys included
• Recommended battery: 12V, 20Ah (lead-acid) or jump starter (not included)

The MINI MOVER GEN 3 is an electric device that mounts in place of the jockey wheel and makes maneuvering a trailer easier without requiring significant force. It's perfect for positioning a caravan, boat, or utility trailer on a campsite , driveway, driveway, garage, or in confined spaces. It allows for precise forward and reverse movement of the trailer, making it particularly useful when parking, coupling to a vehicle, positioning the trailer on a pitch, or moving it over uneven terrain.
