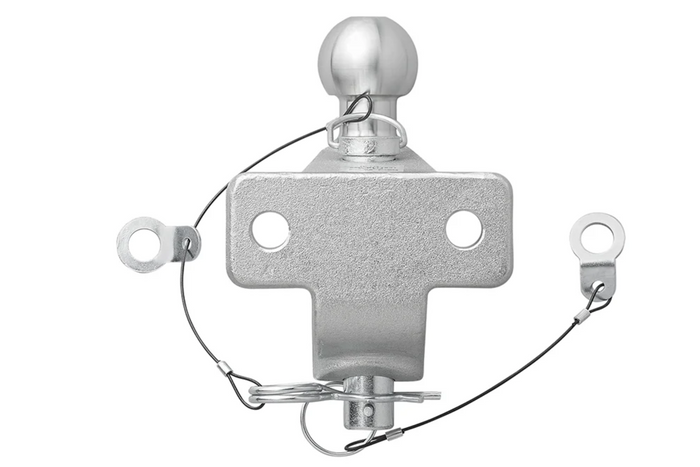

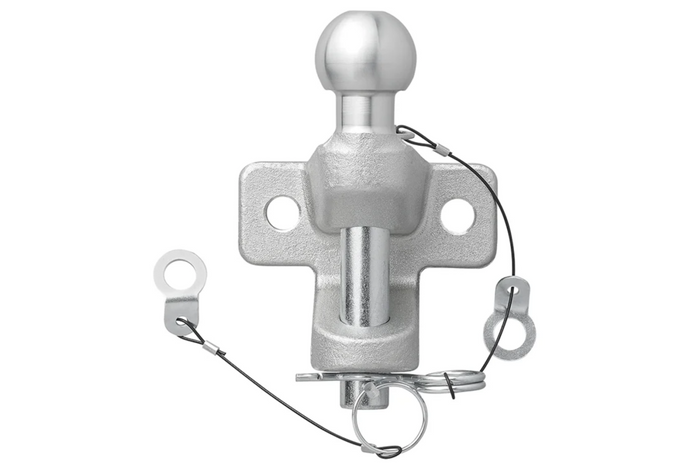

ProPlus 341216V01 towbar ball dual-function tow hitch 50mm 3500kg

ProPlus 341216V01 towbar ball dual-function tow hitch 50mm 3500kg

The reinforced, dual-purpose 341216V01 towbar ball from ProPlus , in a flange-mounted version with front bolts , is an exceptionally robust solution designed for vans, off-road vehicles, and special-purpose vehicles . Its special design allows for compatibility with standard ball couplings and also allows for use in the most demanding operating conditions when mounted to specially adapted, reinforced drawbars. High-quality workmanship and enhanced technical parameters ensure safe and stable use when towing very heavy loads.

In addition to the forged flange ball, the kit includes a steel locking pin (pin) and securing elements on flexible cables to prevent loss: a "Beta" spring cotter pin and an additional locking pin . This kit allows for the full use of the towbar's dual-functionality – both for classic towing of trailers with a ball hitch and for attaching trailers with an eyelet coupling, where the drawbar eye is placed over the lower part of the body and secured with a vertical pin.

Key features and parameters:

• European E-type approval (R55): the product has an official road certificate in accordance with European safety standards, which allows for legal and trouble-free use on roads throughout the European Union;
• increased D (20.2 kN) and S (350 kg) parameters: extreme structural strength – D force value of up to 20.2 kN and permissible vertical pressure on the ball of up to 350 kg allow for safe work under enormous loads;
• maximum towing capacity up to 3500 kg: the forged steel structure allows towing trailers with a total weight of up to 3.5 tonnes , which meets the highest standards in the segment of heavy mechanical hooks;
• standard ball diameter 50 mm: the universal head size ( Ø50 mm ) makes the product compatible with all classic ball hitches of trailers and bicycle platforms;
• Universal, durable design: made of heavy, forged silver steel. A special flange profile ensures stable and secure attachment of the ball to the vehicle's plate or beam.

Technical specifications:

• color: silver
• ball diameter: 50 mm
• force D (strength): 20.2 kN
• maximum vertical load (S): 350 kg
• maximum trailer weight: 3500 kg
• approval: E-type approved (R55)

Summary and editing:

The ProPlus double flange ball is a reliable component designed for special tasks. It's perfect for heavy-duty delivery vehicles, pickups, and machinery where uncompromising durability under high vertical loads is essential. Official R55 certification confirms its resistance to extreme operating conditions , ensuring confidence and stability during every transport.

To mount the ball, use M16 class 8.8 bolts and class 8 nuts. with locking washers (not included). The mounting screws should be tightened with a torque wrench to a force of 240 Nm , which guarantees optimal and safe clamping of the flange to the vehicle's towing beam.
