UNITRAILER one-piece strap with tensioner for strapping 5m/25mm/1t

UNITRAILER one-piece strap with tensioner for strapping 5m/25mm/1t

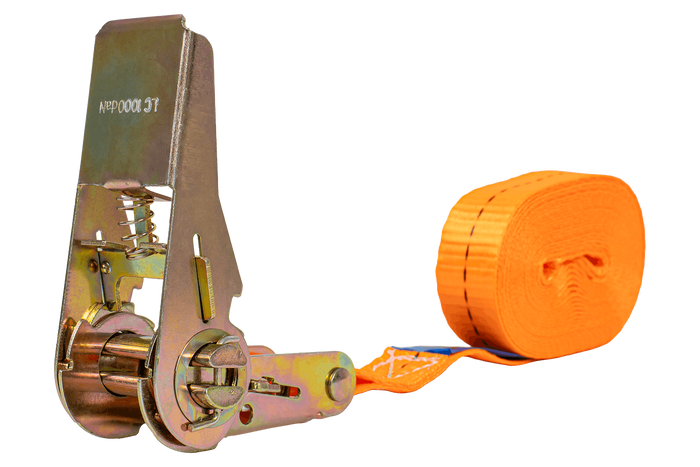

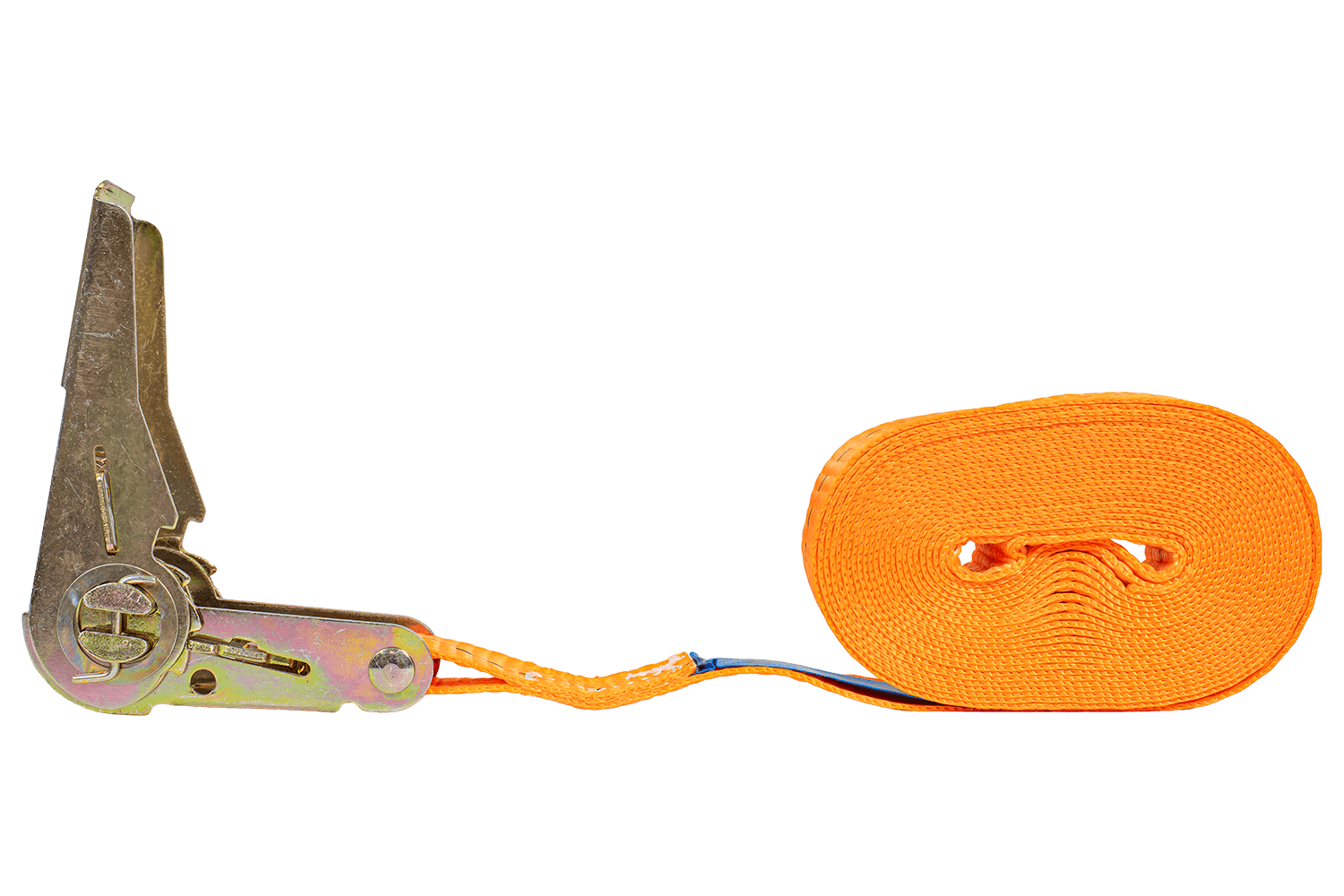

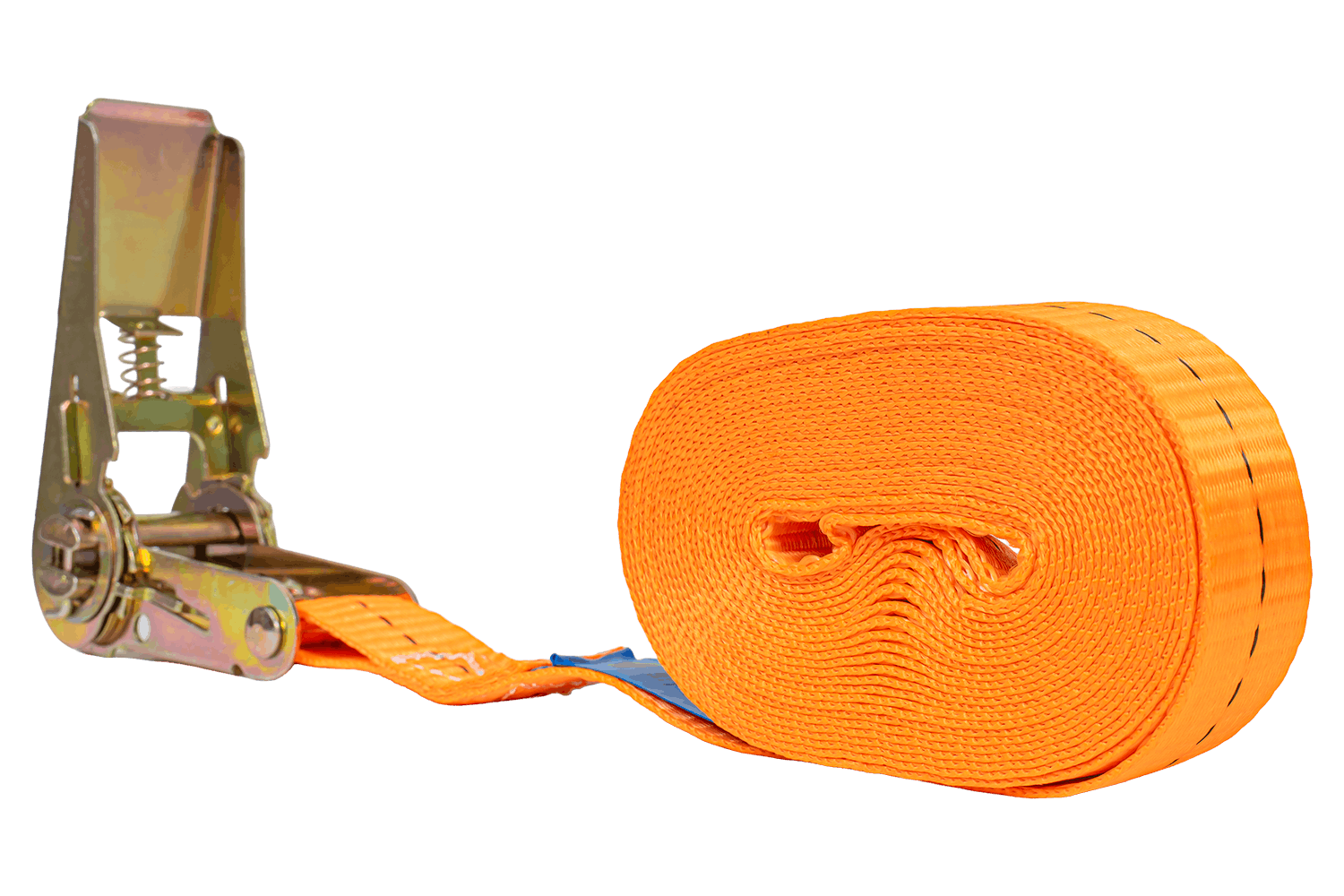

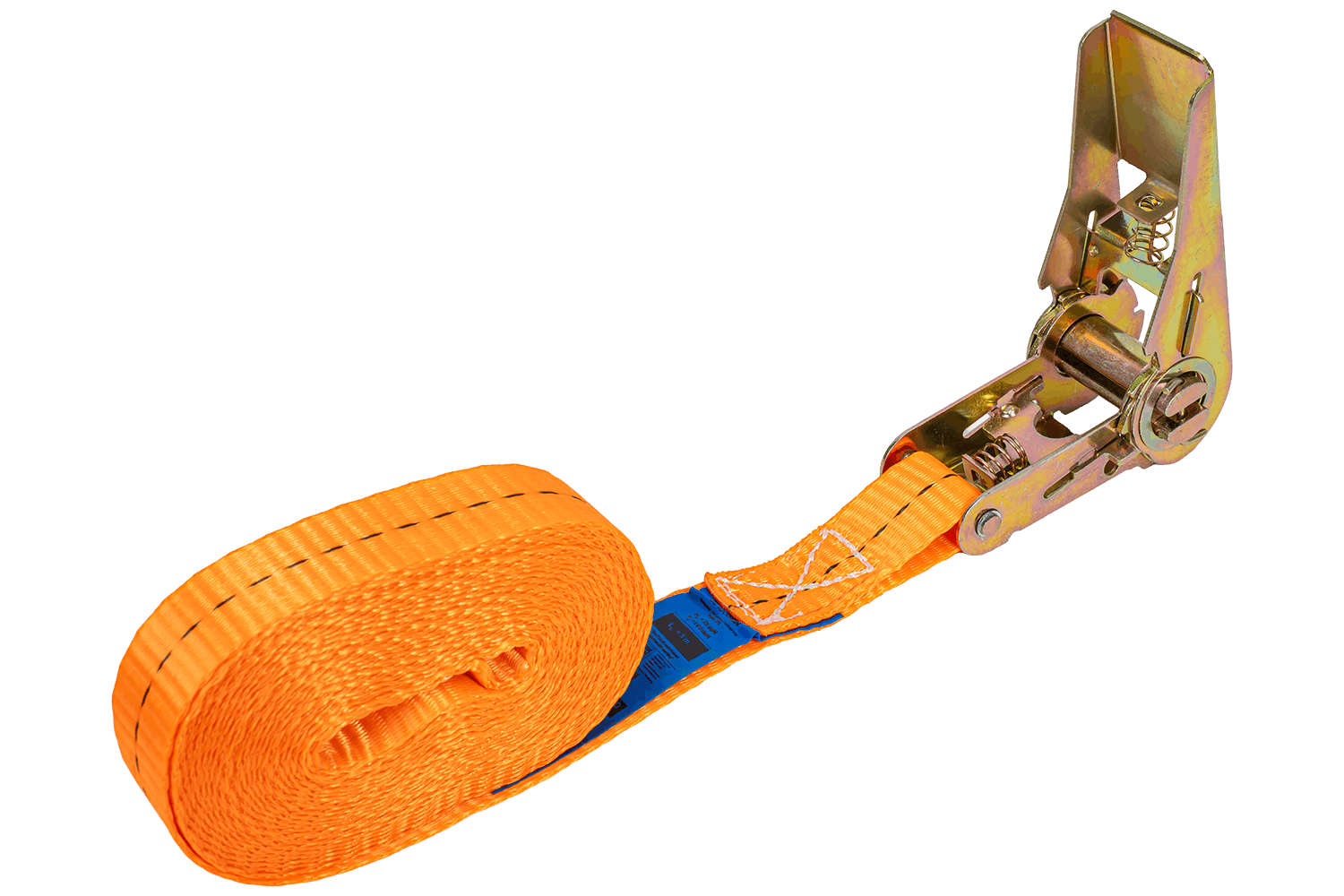

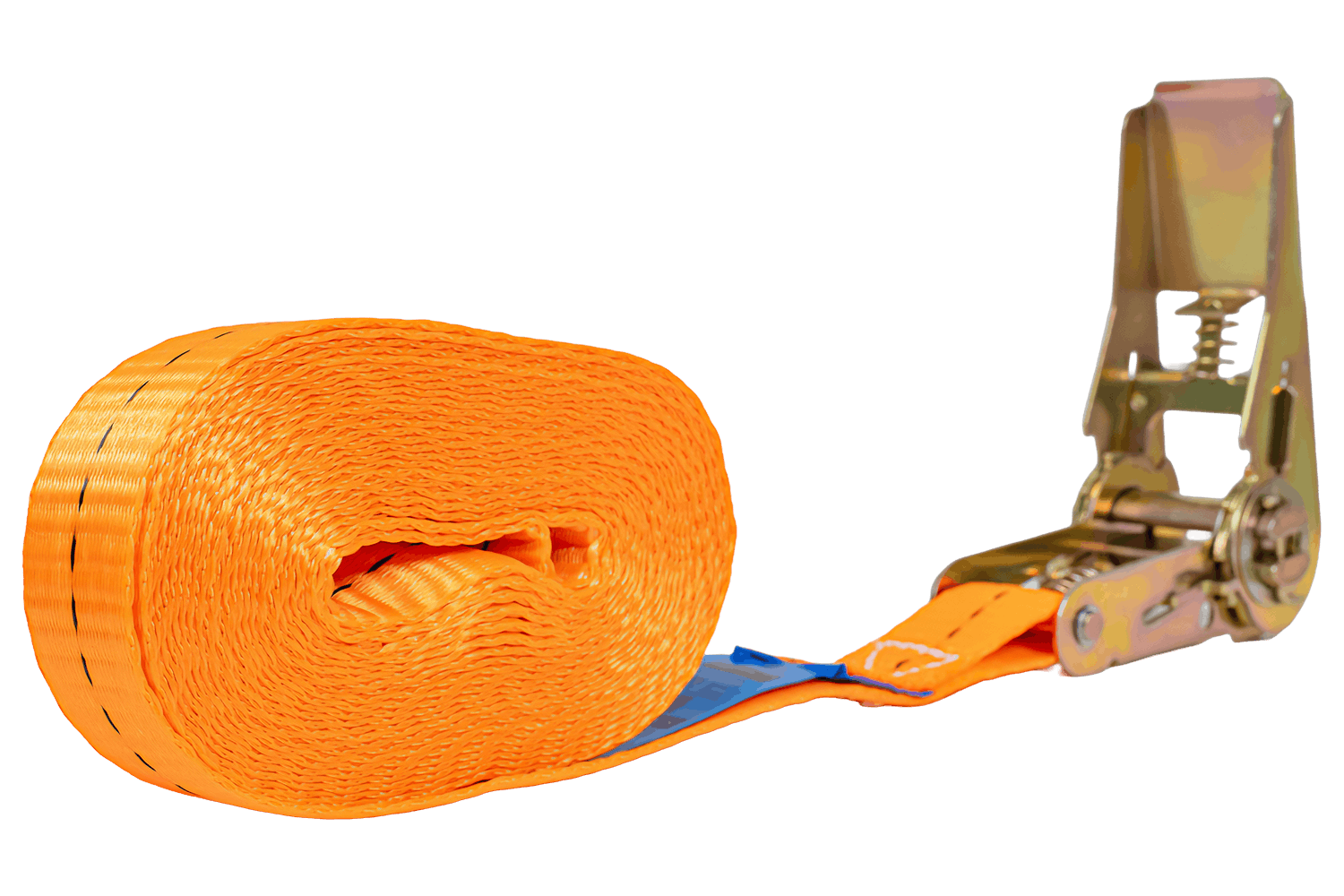

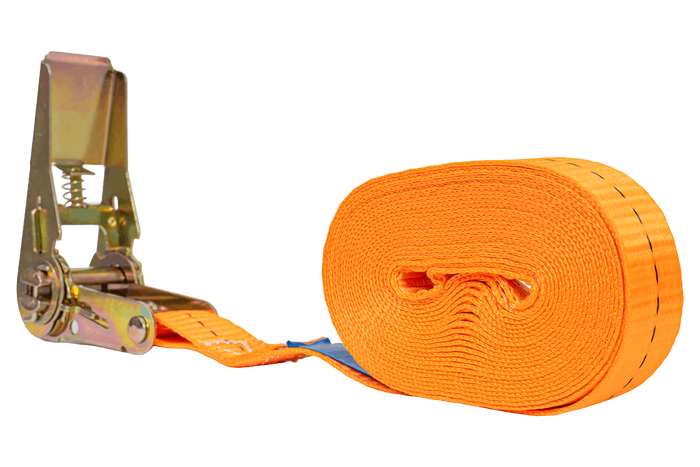

The UNITRAILER one-piece lashing strap with tensioner is designed for securing and securing cargo during transport. It consists of a strap and an integrated tensioner, or ratchet, that allows for convenient tensioning of the strap around the item being transported. The strap's total length is 5 meters , allowing it to be used with loads of various dimensions. The 25 mm wide strap provides adequate pressure and a firm grip on the secured item. The strap has a strapping strength of 1 ton (1000 daN) , making it suitable for securing cargo securely without the need for hooks.

Cargo straps are an essential element in the safe transport of goods— they help securely secure various loads on trailers, trailers , and in transport vehicles. They come in various lengths and strengths, allowing their strength to be adapted to the weight and size of the load being transported. Properly selected straps protect goods from shifting and damage , while also increasing the safety of all road users. IMPORTANT: Straps are intended solely for securing loads, not for suspending them.

Certificates

TÜV-certified lashing straps are a guarantee of quality and safety. This certification is issued by an independent inspection body and confirms that the product has been thoroughly tested for strength, durability, and compliance with European standards . This ensures that the straps will withstand even heavy loads and ensure stable load securing. By choosing lashing straps with the TÜV mark, you are investing in a proven product that increases transport safety and protects the goods being transported.

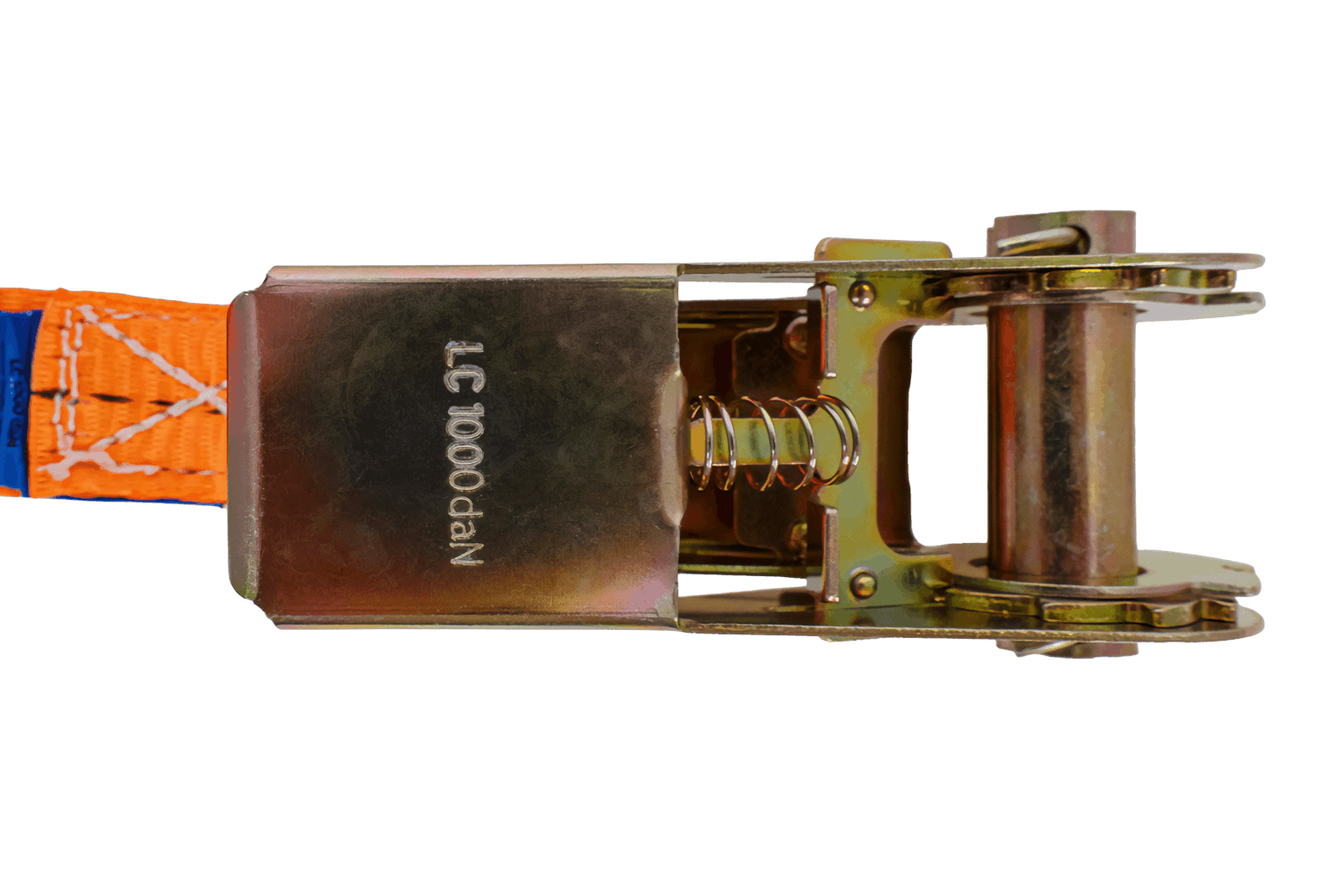

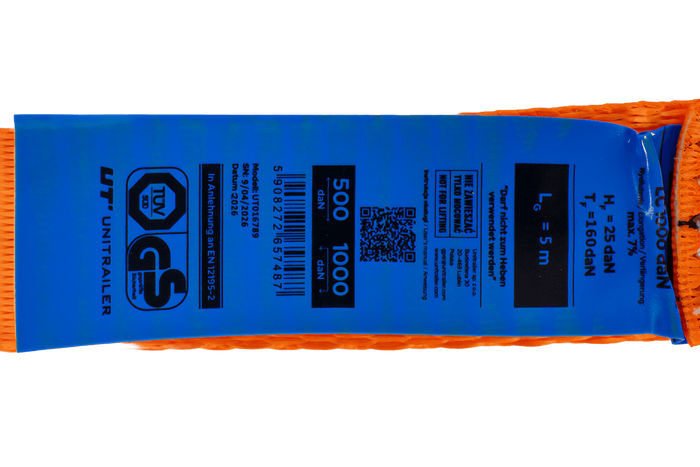

UNITRAILER prioritizes the quality of its straps, which are manufactured from durable, stretch-resistant materials . All metal components—hooks and the tensioning mechanism—are made of durable, anti-corrosive steel, ensuring safe and long-lasting use in various weather conditions. Each strap has a clear label , protected by foil, with information in Polish and English. For convenience and safety, the maximum working load is also engraved on the buckle and hooks, allowing you to quickly check the strap's parameters even if the label is damaged.

Tensile strength (LC)

A 1-tonne (1000 daN) load-carrying capacity measures the sling's ability to withstand forces when operating in a closed configuration, when the strap is wrapped around the load being secured and tensioned using a ratchet. The one-piece, hook-free design is ideal for securing, holding, and stabilizing loads, such as several items in a single package.

Straight Tension Strength (LC)

The lashing strap has a straight tension strength of 0.5 tons (500 daN) , which is the maximum force that a single section of strap can withstand when tensioned. This parameter refers to the strap's straight-line strength and is the basic value used when assessing load securing capabilities. This solution ensures even force distribution and stable load immobilization during transport.

Standard Tension Force (STF)

The tension force is 160 daN, meaning the strap presses the load with a force equivalent to 160 kg , effectively securing it from shifting during transport. This is a key parameter of a transport strap, determining the clamping force that can be achieved with standard strap tension using a tensioner (ratchet). This parameter is particularly important when planning load securing, as it provides information about the actual force immobilizing the load when using standard strap tension, which increases load safety during transport.

Standard Hand Force (SHF)

The manual tension force is 25 daN , which represents the force required to properly secure the load. This value ensures ergonomics and safety, allowing for proper strap tension without the risk of excessive strain. The SHF parameter is important when selecting a strap because it indicates the optimal manual force required to effectively and stably secure the load.

Maximum extensibility

Maximum extensibility refers to the percentage increase in the length of a lashing strap under full load . This value, expressed as a percentage, indicates how much the strap can stretch from its initial length. Maximum extensibility, typically around 7% , allows the strap to absorb shock and absorb sudden changes in force during transport, further protecting the load from damage.
