TT Technology TT.16610-P LED front lamp 3 functions 21xLED 4450lm right for JCB/Cat/Manitou/Volvo/Terex

TT Technology TT.16610-P LED front lamp 3 functions 21xLED 4450lm right for JCB/Cat/Manitou/Volvo/Terex

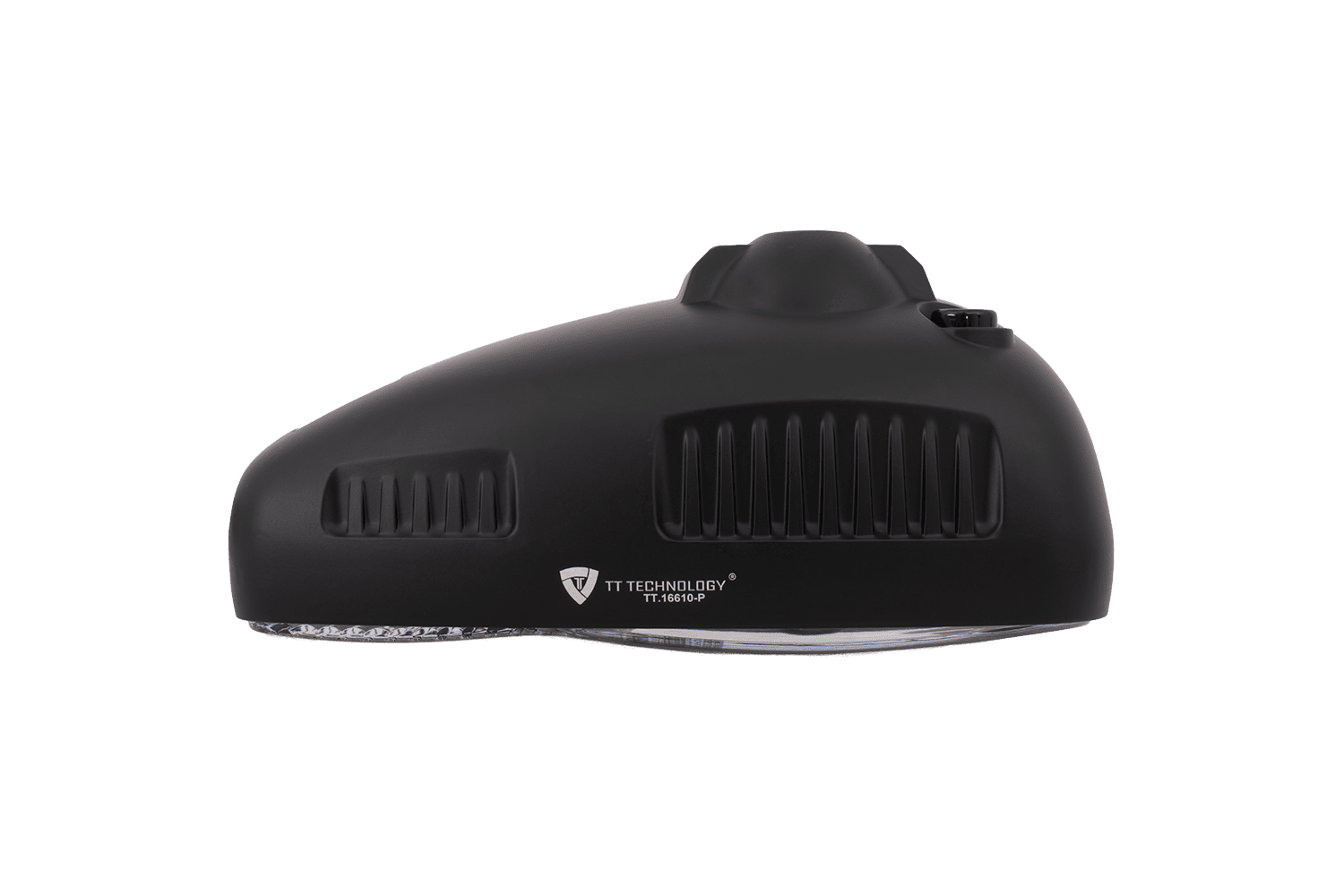

The TT.16610-P front lamp by TT Technology is designed for installation on the right side of the vehicle and has the following dimensions: Width 224 mm, Height 148 mm, Depth 108 mm . Designed to operate within a wide voltage range of 10–32 V, it is suitable for use in various types of agricultural vehicles, such as JCB, Cat, Manitou, Volvo, and Terex tractors. Equipped with a male and female DT 6-pin plug. and The 0.15m cable allows for quick and easy installation. Thanks to LED technology, the lamp provides high performance, durability, and energy efficiency, ensuring safety in various road conditions.

High-quality front headlamp with low beam, high beam, and integrated turn signal, based on 21 108W LEDs . Luminous flux: 750 lm in low beam mode and 4450 lm with high beam and low beam on. Emits a neutral white 5700K light that is easy on the eyes and does not cause fatigue during long-term use.

The lamp boasts high resistance to shock, vibration, and extreme temperatures ranging from -40°C to +80°C, ensuring reliable operation in harsh operating conditions. Additionally, the lamp meets the CISPR 25 Class 4 standard, ensuring high efficiency in reducing electromagnetic noise . This means it won't interfere with other electronic devices in the vehicle and can be safely used in modern machines equipped with sensitive electronics.

Lamp functions

The lamp has three functions: a low beam , which ensures safe illumination of the road ahead without dazzling other road users; a high beam , which allows for maximum illumination of the area in conditions of limited visibility; and a turn signal , which clearly signals the intention to turn or change lane, improving communication with other drivers and the safety of maneuvers.

Tightness class

Lamps with an IP68/69K rating provide the highest level of protection against dust and water , making them ideal for the most demanding operating conditions. IP68 indicates complete resistance to dust ingress and the ability to withstand prolonged immersion in water (over 1 meter deep), while IP69K guarantees resistance to high-pressure and high-temperature water, such as during pressure washing. These properties make the lamps an ideal choice for use in commercial vehicles, trailers, agricultural, construction, and off-road machinery – anywhere reliability and durability in extreme conditions are essential.

Approvals

The lamp is E9 approved , confirming its roadworthiness in the EU, and has key certifications: CE (compliance with safety/EMC requirements) and RoHS (restriction of hazardous substances in electronics). It also meets harmonized ECE regulations: R148 – for light signaling devices (including direction indicators, position/outline marker lamps), and R149 – for high and/or low beam headlamps (including LEDs). This set of markings guarantees photometric and electrical compatibility, low EMC interference, and legal use in public traffic .

Headlights effectively illuminate the workspace around the vehicle , which is particularly important when working at night or in conditions of limited visibility. They are primarily used in agricultural, construction, and forestry machinery, as well as in commercial vehicles , where they provide the operator with improved visibility and increased safety. Thanks to their high light output, durability, and weather resistance, these lights are indispensable for nighttime fieldwork, maneuvering in loading yards, or operating equipment in difficult conditions. Choosing modern LED lights guarantees lower energy consumption, long service life, and comfortable work in all conditions.

Fits:

• HELLA:
  1EE 996 174-401
  1SA996120107
  1EE996174201
  Combi220


• AEBI:
  12671021
  12683795


• MAFI: 0005800148


• MAN:
  81251016403
  81.25101.6403FF
  81251016792
  81AC1258117


• MANITOU: 929717


• PAUS: 556625


• SCANIA: 20223061


• VOLVO: 17 286 451

• Faresin: ME11096A40

• JCB:
  700/50192
  700/50194
