UNITRAILER TJ5002 extendable crank support for 1300kg flatbed trailer 560-940mm

UNITRAILER TJ5002 extendable crank support for 1300kg flatbed trailer 560-940mm

The UNITRAILER TJ5002 extendable support leg features a 57 mm diameter tube , ensuring a solid and stable construction. Crank-type extendable supports have a higher load capacity , making them suitable for heavier trailers requiring stable and durable support.

TJ5002 Extendable Crank Support designed for use with the TJ5002A bracket.

Permissible load

The support's maximum load capacity is 1,300 kg , ensuring stable and safe support for the trailer during parking, use, or loading. The high load capacity guarantees reliable support for the structure, reduces the risk of tilt , and increases the safety and comfort of trailer use.

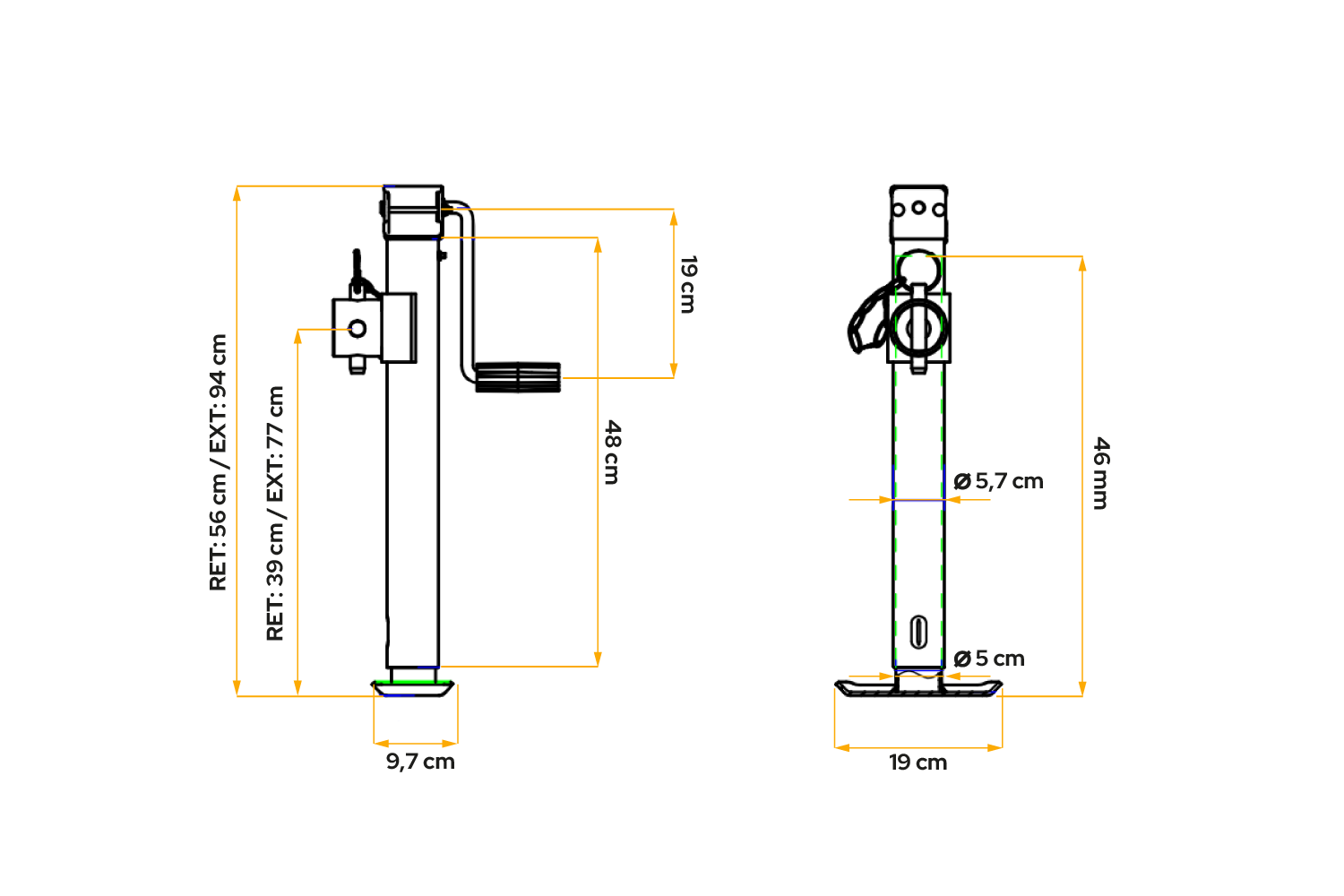

Extension length

The XL (long) support leg features an increased adjustment range , allowing for better adaptation to varying drawbar heights and ground conditions. The extension length is 380 mm , providing a greater adjustment stroke and more convenient lifting and stabilizing of the trailer, even on uneven terrain. Combined with the 560 mm tube, the total support leg height is 940 mm , allowing for stable trailer positioning when parked, loaded, or in use. The appropriate adjustment range allows for stable trailer positioning when parked, loaded, or in use.

Tilt

The support is rotatable and equipped with a tilt function that allows it to be folded down while driving. This solution saves space and prevents restriction of the trailer's ground clearance. When lowered, it provides stable support for the trailer during parking and use.

Crank

The extendable support is operated by a side-mounted crank , which allows for convenient raising and lowering of the support. The fixed crank ensures simple and quick height adjustment and stable support for the trailer when parked, making it easier to prepare for use.

Anti-corrosion protection

The support is made of powder-coated steel , providing effective protection against corrosion and long service life, even with intensive outdoor use. The paint coating protects the steel components from moisture, road salt, and changing weather conditions, increasing the durability and resistance of the structure to damage.

Extendable crank supports are a practical trailer accessory used to stabilize the trailer during parking, loading, and use . Height adjustment is achieved using a crank, allowing for easy and precise adjustment of the support to the ground. They provide reliable structural support, reduce tilt, and increase safety around the trailer. They are most often mounted at the rear of the frame and help maintain stability, especially when the trailer is not connected to a vehicle. They are not designed to lift a loaded trailer , but rather to provide stable support. This practical solution is used on transport trailers, boat trailers, and caravans, improving comfort and safety.
