AL-KO 1223638 automatic jockey wheel with handle 500kg 60mm 1010-1350mm

AL-KO 1223638 automatic jockey wheel with handle 500kg 60mm 1010-1350mm

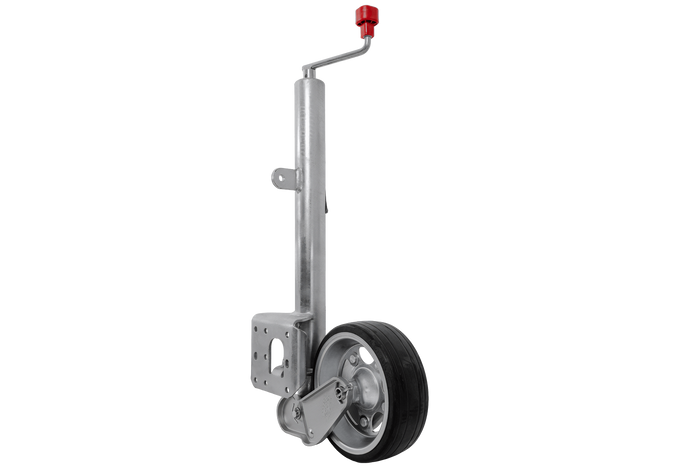

The AL-KO support wheel 1223638 is equipped with a tube with a diameter of 60 mm and a total length of 1010 mm including the wheel , which ensures a solid, stable construction and comfortable work even with a higher drawbar.

The product has a factory-welded mounting bracket measuring 158 x 145 mm , with mounting holes measuring 11 mm in diameter and spaced 105 x 100 mm apart . This solution eliminates the need for an additional clamp, simplifies installation, and increases the durability of the entire connection.

Permissible load

The permissible load when parked is up to 500 kg , which is a very high value and provides exceptionally stable and safe support for the trailer during loading, unloading, and extended periods of standstill. During maneuvering, the maximum load is 300 kg, ensuring safe rolling and positioning of the trailer without the risk of overloading the mechanism. This high load capacity ensures a secure drawbar support, minimizes the risk of tilt, and increases the comfort of working around the trailer even with a heavier load. Maintaining the maximum load parameters is crucial to maintaining the durability of the mechanism, protecting structural components from overload, and ensuring long and trouble-free product operation.

Extension length

The XL (long) jockey wheel features an increased adjustment range , allowing for better adaptation to varying drawbar heights and ground conditions. The jockey wheel's extension length is 340 mm , providing an adequate range of drawbar height adjustment. The height of the jockey wheel with the wheel is 1010 mm, and the maximum height with extension reaches 1350 mm . This range allows for convenient adjustment of the trailer to various ground conditions and facilitates connecting and disconnecting it from the tow bar. The appropriate extension range increases comfort and stability when parked.

Fully automatic wheel

The jockey wheel is equipped with a fully automatic lifting mechanism that allows for quick and convenient tilting of the wheel into the transport position without the need for manual locking. Additionally, it has a fully automatic support foot that rests firmly on the ground, increasing the comfort and safety of using the trailer when parked.

Type of wheel

The 230 x 80 mm wheel is equipped with a solid rubber tire , eliminating the risk of punctures and ensuring high durability during use. The steel rim reinforces the structure, increases resistance to loads and mechanical damage, ensuring stable and reliable operation in various operating conditions.

Anti-corrosion protection

The jockey wheel is made of electro-galvanized steel , providing effective protection against corrosion and long service life, even with intensive outdoor use. The zinc coating protects the steel components from moisture, road salt, and changing weather conditions, increasing the durability and resistance of the structure to damage.

A jockey wheel is a practical trailer accessory that stabilizes the trailer when parked and facilitates maneuvering and rolling the trailer around a yard, driveway, or campsite. It allows for convenient coupling and uncoupling of the trailer from the towbar, as well as precise positioning. Jockey wheels are designed to stabilize the trailer – they are not intended for lifting a loaded trailer . They are an ideal solution for cargo trailers, boat trailers, and caravans , increasing comfort and safety.
