Light set: ASPÖCK rear lights + ASPÖCK side marker lights + MANTES 7m 13-PIN harness + quick connectors

Light set: ASPÖCK rear lights + ASPÖCK side marker lights + MANTES 7m 13-PIN harness

The lighting set is a comprehensive electrical installation that provides complete and compliant with regulations lighting of trailers, tow trucks and other transport vehicles , increasing their visibility and safety on the road. It consists of rear and marker lights, electrical harness and quick connectors. Quick connectors enable quick and easy assembly, and also ensure a durable and safe connection of marker lights with wires . Thanks to high-quality components, the set guarantees reliable operation, good visibility and compliance with applicable safety standards. This is the ideal solution for those looking for a comprehensive and durable vehicle lighting system .

The set includes:

• 1x left rear light ASPÖCK MULTIPOINT II (24-7000-007)
• 1x rear light right ASPÖCK MULTIPOINT II (24-7210-007)
• 2x ASPÖCK SUPERPOINT II marker lamp (31-3709-017)
• 1x MANTES electrical harness, 7 m long, terminated with a 13 PIN plug
• 2x quick connector

ASPÖCK MULTIPOINT rear lights II 7 functions left + right

A set of two MULTIPOINT II rear lights by ASPÖCK, designed for installation on the left and right side of the vehicle, are characterized by the following dimensions: width 240 mm, height 140 mm, depth 52 mm . Both lamps are equipped with a 5-pin bayonet connector , which allows for easy and quick installation in trailers, buses or tow trucks. The rear lamps have E9 homologation , which means that they meet the requirements of European safety and quality standards .

The lamps are factory-equipped with 12V bulbs , but can be easily adapted to 24V by replacing the bulbs, which increases their versatility and versatility of use.

Rear light functions: position light , which ensures the vehicle's visibility when driving at night; brake light , signaling braking; turn signals , enabling you to indicate your intention to turn; light reversing (right lamp), which facilitates reversing manoeuvres by improving visibility behind the vehicle; light fog lights (left lamp), which increases safety in difficult weather conditions, such as fog or heavy rainfall; a license plate light , which ensures the visibility of the vehicle's registration number at night; and a reflective triangle that increases the visibility of the vehicle .

ASPÖCK SUPERPOINT II universal marker lamps on a rubber arm

A set of two SUPERPOINT II marker lamps by ASPÖCK designed for mounting on the left and right side of the vehicle , are characterized by the following dimensions: width 125 mm, height 100 mm . Equipped with a rubber mounting arm and a 1 m flat cable , they enable easy and quick installation, they are used in delivery vehicles, trailers, semi-trailers or campers . The marker lamps have E9 homologation and meet the standard ADR-Zone 2 , which means that they are suitable for use in explosion-hazardous areas.

The lamps are factory-equipped with 12V bulbs , but can be easily adapted to 24V by replacing the bulbs, which increases their versatility and versatility of use.

Lamp functions: marker light front (white) , which highlights the contours of the vehicle at the front, improving its visibility for other road users, especially after dark and in difficult weather conditions ; contour light rear (red), which signals the presence of a vehicle from behind, increasing safety and minimising the risk of collisions, and side marker light (orange) , which highlights the contours of the vehicle and improves its visibility, especially at night and in poor lighting conditions .

Tightness class

Marker lamps with IP68 tightness class are the highest level of protection against external factors, guaranteeing reliability in extreme conditions. The IP68 marking indicates that the lamps are completely dust-proof and resistant to long-term immersion in water at a specified pressure and depth, in accordance with standards. Thanks to this tightness class, the lamps will prove useful in vehicles and machines used in difficult environments, such as construction, agriculture or transport, ensuring long life and failure-free operation.

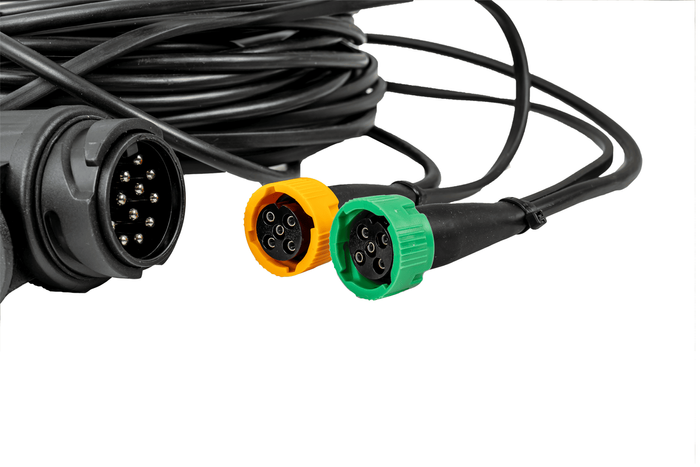

MANTES electrical installation, trailer tow truck harness, 7m, 13 PIN plug, 2x 5 PIN bayonets

The MANTES electrical system is a practical and reliable solution for car trailers. The main cable is 7 meters long, with a cross-section of 0.5 mm², and is equipped with a standard 13 PIN plug , ensuring universal compatibility with most vehicles.

The harness is equipped with two 5 PIN bayonet connectors for connecting the rear lights. The bayonet system ensures quick and secure installation, eliminating the risk of accidental disconnection while driving. The design of the connectors guarantees a waterproof connection and protects the contacts from corrosion, which translates into long-term, trouble-free operation of the entire trailer lighting system.

The installation has an integrated branching of two 5-meter-long cables to the marker lamps, which effectively mark the vehicle's dimensions both during the day and at night, improving safety during maneuvers and driving in difficult conditions.

Supported lighting features

position light

signpost

brake light

reversing light

fog light

marker light

license plate light

The harness supports lighting functions: left/right position light , which ensures the vehicle's visibility when driving at night; left/right turn signal , which allows you to indicate your intention to turn; brake light , which signals braking; left/right reversing light , which facilitates reverse manoeuvres by improving visibility behind the vehicle; fog light , which increases safety in difficult weather conditions, such as fog or heavy precipitation; left/right marker light , which highlights the outer contours of the vehicle, improving its visibility on the road, especially at night and in low light conditions; and license plate light , which ensures the visibility of the vehicle's registration number at night.

Meaning of wire colors in 13 PIN plug

• (1) yellow - left turn signal
• (2) blue - fog light
• (3) white - mass
• (4) green - right turn signal
• (5) brown or black right position light
• (6) red - brake light
• (7) black - left position light
• (8) gray - reversing light
