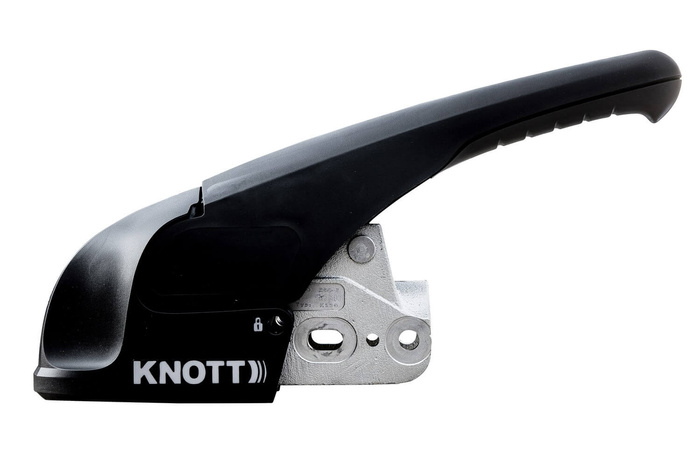

KNOTT KS30 ball hitch with stabilizer for 3000kg trailer with 35-50mm tubular drawbar

KNOTT KS30 ball hitch with stabilizer for 3000kg trailer with 35-50mm tubular drawbar

The KS30 ball hitch with stabilizer from KNOTT is ideal for horse trailers, vans, caravans, trailers, and truck trailers with a GVW of up to 3000 kg. Equipped with an advanced stabilization system, this hitch guarantees an exceptional level of safety and driving comfort. Designed for mounting on a pipe drawbar with a diameter of 35 mm, 40 mm, 45 mm and 50 mm. The KS30 hitch has a permissible vertical load of 200 kg, which ensures optimal load distribution between the vehicle and the trailer. The innovative stabilization system, using friction linings, effectively minimizes trailer swaying, significantly improving the stability of the set, especially at higher speeds or in difficult road conditions. Additionally, the hitch is equipped with an integrated protective element that protects both the vehicle from scratches and the user from accidental impacts during maneuvering. These advanced features make the KS30 hitch the perfect choice for professionals and demanding users who value the highest level of safety and comfort when transporting heavy loads.

A ball hitch is an element mounted on the trailer drawbar, which is used to safely connect the trailer to the towing vehicle. Thanks to its design, it allows for stable seating on the towbar ball, which ensures a safe connection and smooth movement of the trailer while driving. Using a ball hitch is important because it minimizes the risk of the trailer becoming detached during transport and ensures proper control over the trailer, especially when turning and maneuvering. Using a ball hitch increases the safety and comfort of transporting various loads.

Consumption monitoring

The ball hitch wear indicator is a solution that significantly increases the safety and reliability of the trailer-vehicle connection. This precise monitoring system allows the user to easily and quickly assess the technical condition of the hitch without the need for specialist measurements. The indicator clearly informs about the degree of wear of the hitch ball, signaling the need for replacement before dangerous situations occur. Thanks to this, you can effectively prevent problems related to excessive wear, such as increased play or the risk of unexpected disconnection of the trailer while driving.

Correct engagement indicator

The correct coupling indicator in the ball hitch is a practical convenience that allows the user to quickly verify the correct connection between the trailer and the towing vehicle. Thanks to this indicator, the user can easily assess whether the hitch is correctly fastened, which increases safety during transport. In the event of incorrect coupling, the indicator signals the problem, which helps avoid potential failures or dangers on the road. This function minimizes the risk of errors when connecting the trailer, which is especially important for people who use trailers regularly.

Safety and anti-tilt system

The stabilization system in the hitch provides effective protection against unwanted trailer movements. After pressing the lever, the mechanism activates the braking system, based on special friction linings that precisely control the vehicle's tow ball. Thanks to this solution, any tendency to rock or tilt is eliminated immediately, before it turns into dangerous oscillations, which translates into greater stability and driving comfort.
