ProPlus 341507 jockey wheel 150kg 48mm 650-880mm
ProPlus 341507 jockey wheel 150kg 48mm 650-880mm

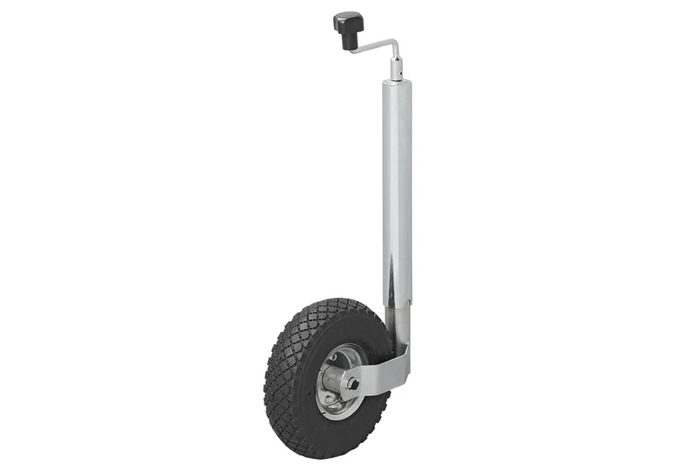

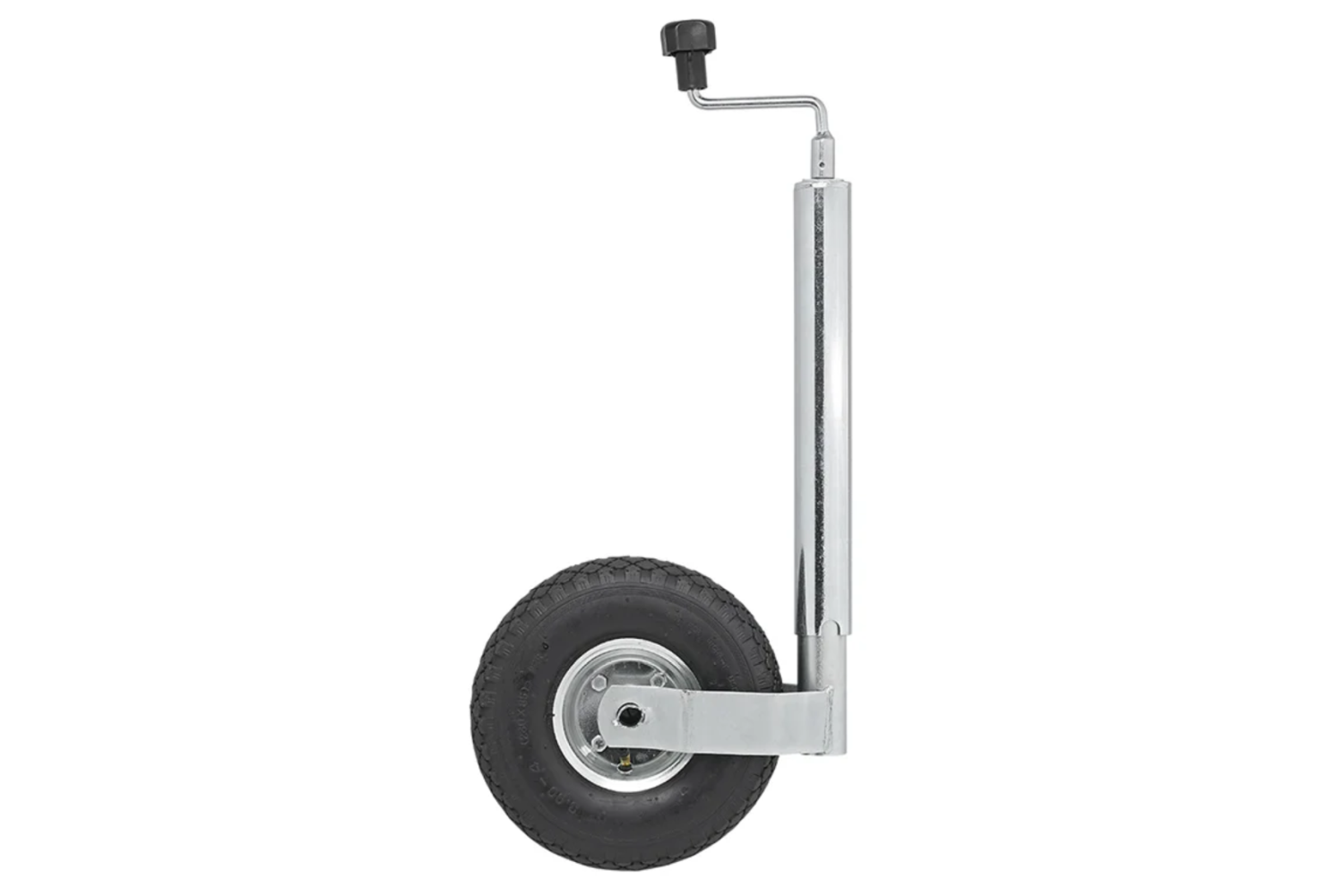

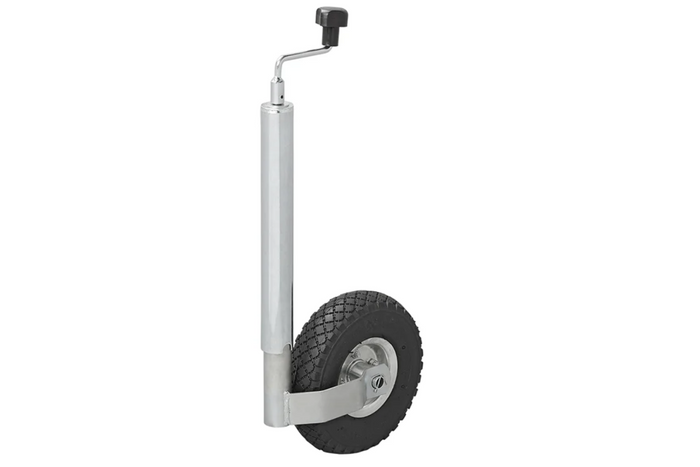

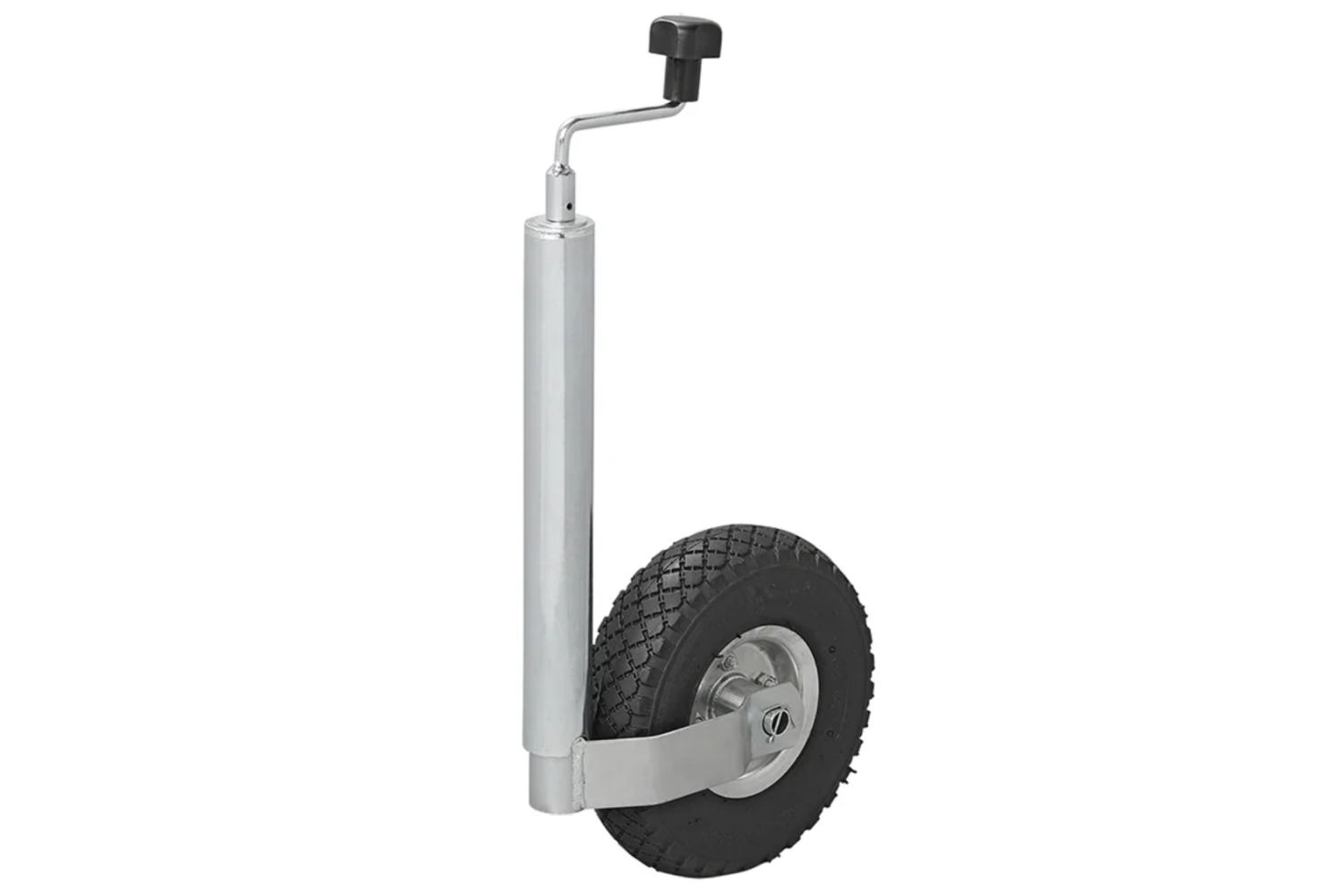

The 341507 jockey wheel from ProPlus is equipped with a 48 mm diameter tube , which ensures a solid and stable construction.
Permissible load
The permissible load when parked is 150 kg , providing stable support for the trailer during loading, unloading, and parking. During maneuvering, the maximum load is 90 kg , ensuring safe rolling and positioning of the trailer without the risk of overloading the mechanism. Proper adherence to these limits ensures product durability and safe operation.
Extension length

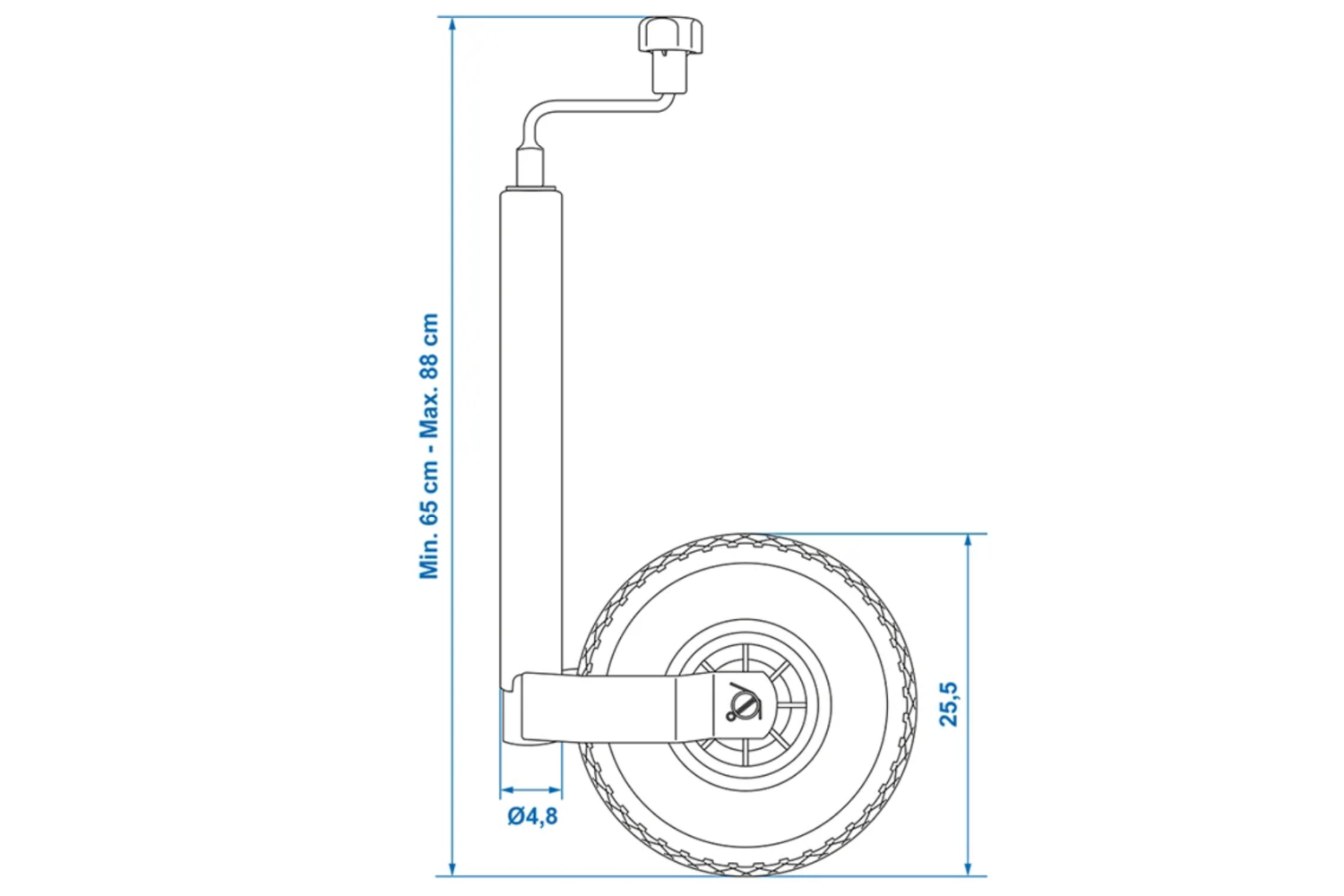

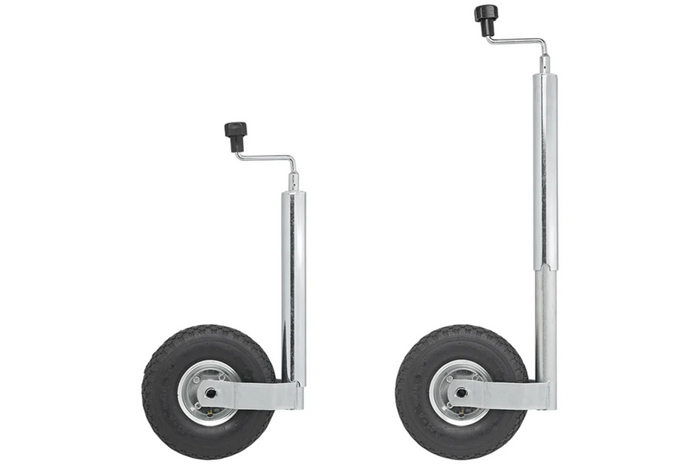

The jockey wheel extension is 230 mm , providing an adequate range of drawbar height adjustment. The height of the jockey wheel with the wheel is 650 mm, and the maximum height with extension reaches 880 mm . This range allows for convenient adjustment of the trailer to various ground conditions and facilitates connecting and disconnecting it from the tow bar. The appropriate extension range increases comfort and stability when parked.
Type of wheel

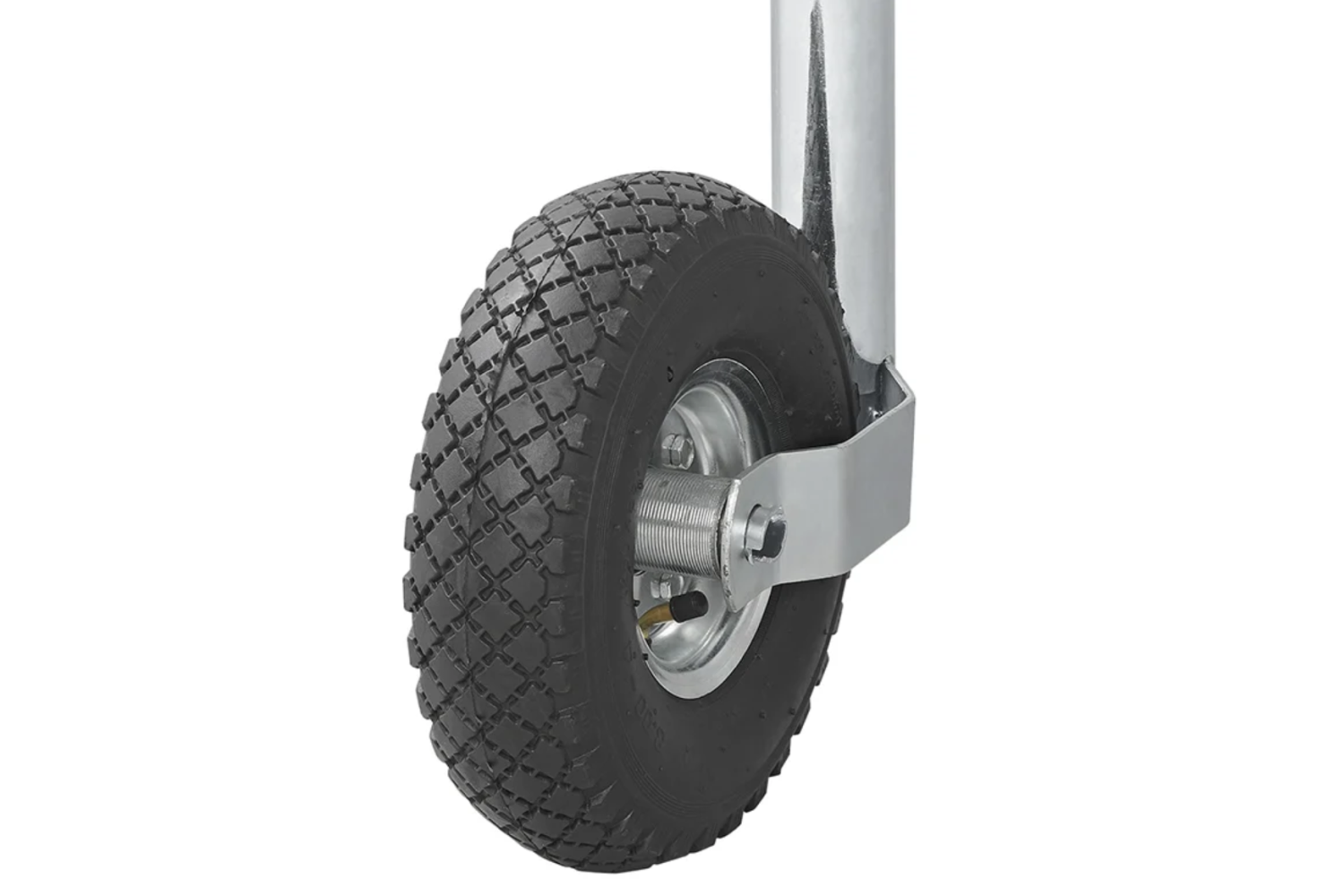

The 260 x 85 mm wheel is an inflatable wheel with a steel rim , providing better shock absorption and smoother trailer handling, especially on uneven surfaces. The air-filled tire effectively dampens vibrations and improves maneuverability. The steel rim reinforces the structure and increases resistance to loads and mechanical damage, ensuring durability in various conditions of use. An inflatable wheel differs from a solid rubber wheel in that it contains air, which allows it to better absorb shocks and uneven terrain. A solid rubber wheel is airless and therefore cannot be punctured, but it provides less vibration dampening.
A jockey wheel is a practical trailer accessory that stabilizes the trailer when parked and facilitates maneuvering and rolling the trailer around a yard, driveway, or campsite. It allows for convenient coupling and uncoupling of the trailer from the towbar, as well as precise positioning. Jockey wheels are designed to stabilize the trailer – they are not intended for lifting a loaded trailer . They are an ideal solution for cargo trailers, boat trailers, and caravans , increasing comfort and safety.
