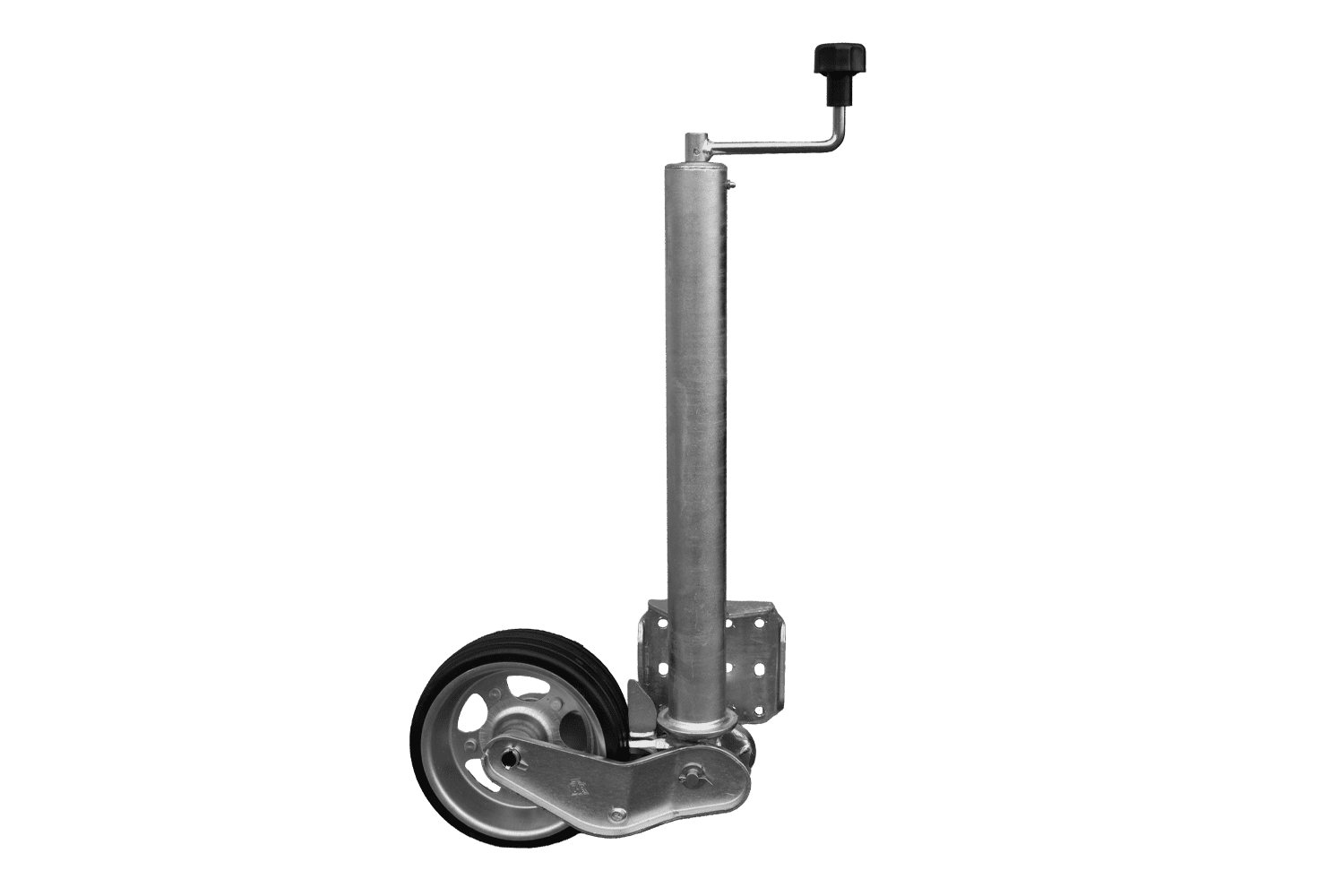

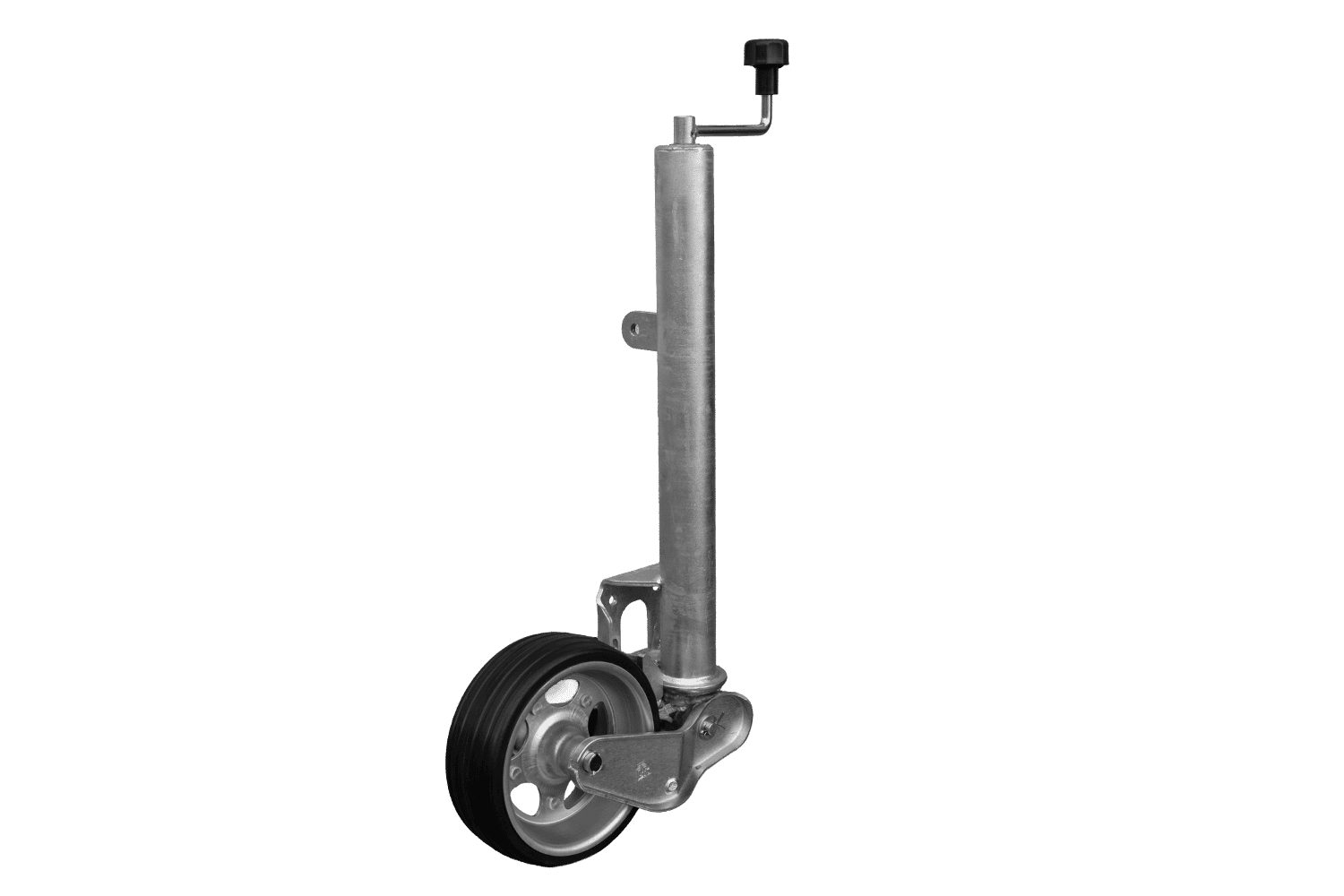

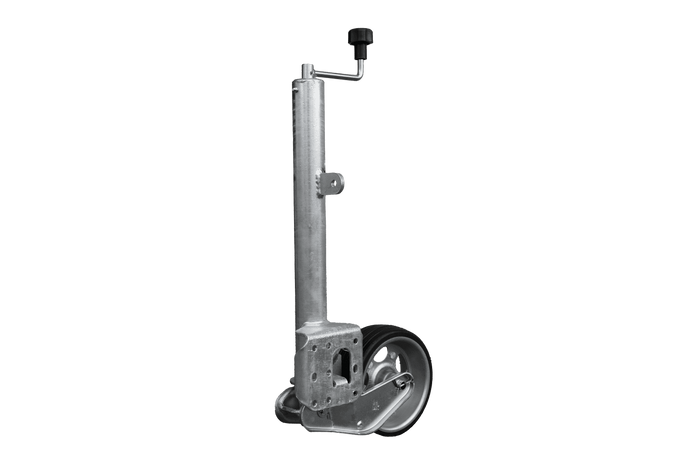

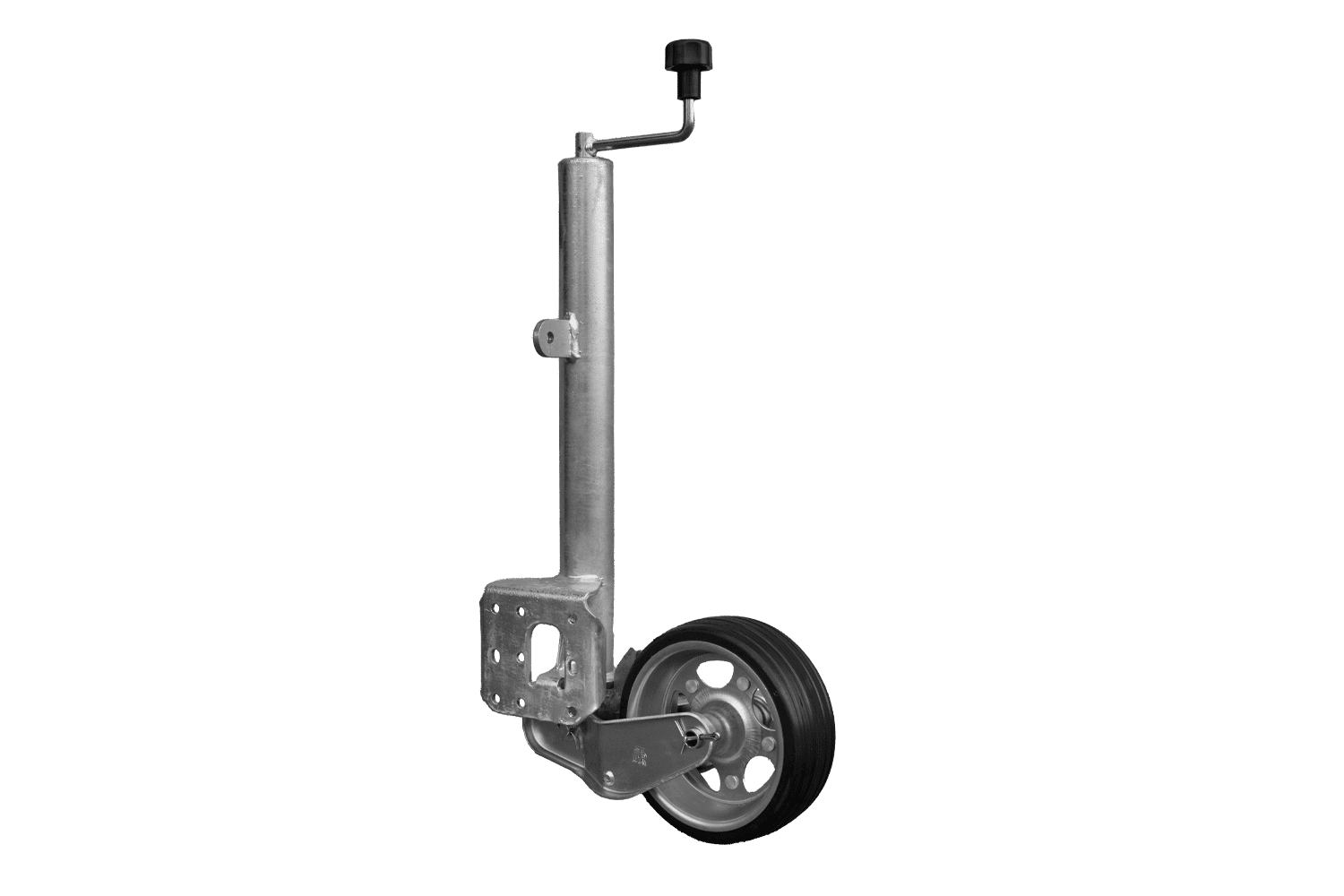

UNITRAILER automatic jockey wheel with handle 500kg 60mm 660-904 mm

UNITRAILER automatic jockey wheel with handle 500kg 60mm 660-904 mm

The UNITRAILER jockey wheel features a 60 mm diameter , 570 mm long tube, ensuring a solid and stable construction. The total height of the tube, including the wheel, is 904 mm , allowing for convenient adjustment to various drawbar heights.

Permissible load

The permissible load when parked is 500 kg , providing stable and safe support for the trailer during loading, unloading, and extended periods of standstill. A properly selected load capacity ensures reliable support for the drawbar, reduces the risk of tilt, and improves comfort when working around the trailer. Maintaining the maximum load values ​​is crucial for maintaining the durability of the mechanism, protecting structural components from overload, and ensuring long and trouble-free product operation.

Extension length

The XL (long) support wheel has an increased adjustment range, which allows for better adjustment to different drawbar heights and ground conditions. The jockey wheel extension is 244 mm , providing an adequate range of drawbar height adjustment. The jockey wheel height is 660 mm, and the maximum height with extension reaches 904 mm . This range allows for convenient adjustment of the trailer to various ground conditions and facilitates connecting and disconnecting it from the tow bar. The appropriate extension range increases comfort and stability when parked.

Fully automatic wheel

The jockey wheel is equipped with a fully automatic lifting mechanism that allows for quick and convenient tilting of the wheel into the transport position without the need for manual locking. Additionally, it has a fully automatic support foot that rests firmly on the ground, increasing the comfort and safety of using the trailer when parked.

Crank with thrust bearing

The crank is equipped with a thrust bearing , which significantly improves comfort. The bearing reduces friction during operation, resulting in smoother and lighter crank movement . This means that raising and lowering the jockey wheel requires less force and is more comfortable, even under heavy loads.

Type of wheel

The 230 x 80 mm wheel is equipped with a solid rubber tire , eliminating the risk of punctures and ensuring high durability during use. The steel rim reinforces the structure, increases resistance to loads and mechanical damage, ensuring stable and reliable operation in various operating conditions.

Anti-corrosion protection

The jockey wheel is made of hot-dip galvanized steel , providing excellent corrosion protection and long service life when used outdoors. A thick zinc coating protects the steel components from moisture, road salt, and changing weather conditions. The exception is the wheel bracket, which is electro-galvanized , further increasing its resistance to corrosion and everyday use.

A jockey wheel is a practical trailer accessory that stabilizes the trailer when parked and facilitates maneuvering and rolling the trailer around a yard, driveway, or campsite. It allows for convenient coupling and uncoupling of the trailer from the towbar, as well as precise positioning. Jockey wheels are designed to stabilize the trailer – they are not intended for lifting a loaded trailer . They are an ideal solution for cargo trailers, boat trailers, and caravans , increasing comfort and safety.
