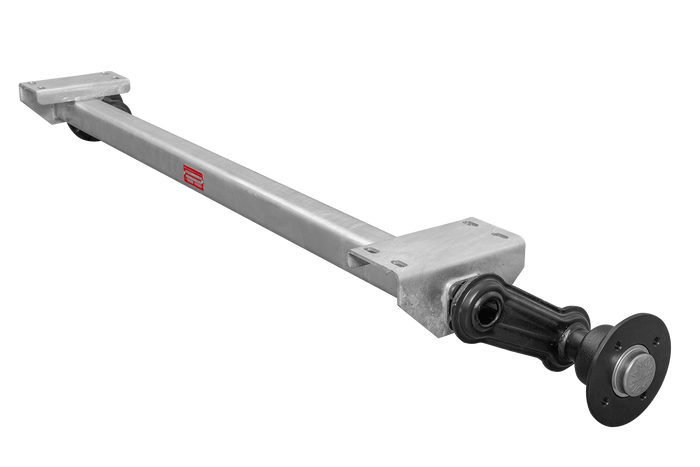

KNOTT VG7-L unbraked axle for 750kg trailer 1190mm 1623mm 4x100

KNOTT VG7-L unbraked axle for 750kg trailer 1190mm 1623mm 4x100

The unbraked axle from KNOTT is designed for light trailers with a maximum load capacity of 750 kg. The mounting hole spacing is 1190 mm, the hub spacing is 1623 mm, which allows for easy installation in a wide range of vehicles. The standard 4x100 bolt spacing ensures compatibility with most wheels available on the market. The swing arm length is 145 mm, which ensures stability and optimal shock absorption, thus increasing driving safety, even with a full load.

Axles are the structural foundation of every trailer, providing its stability, durability and appropriate cushioning during transport. They are a key element that allows for the safe transport of various loads. Choosing the right axles is important because it affects the safety, driving comfort and durability of the entire transport system. Appropriate cushioning helps protect the transported goods from damage, and the correct load capacity ensures stability during driving, especially in difficult conditions.

Trailer axles - versatility of use

Trailer axles are distinguished by their versatility, thanks to which they can be used in various types of vehicles, such as cargo trailers, caravans, flatbed trailers, or trailers for transporting animals and equipment. Their universal design allows them to be adapted to various transport conditions, regardless of the type of load being transported. These axles provide stability, safety and driving comfort, which makes them a reliable solution both in everyday use and for more specialized tasks. Thanks to the possibility of installing additional components, such as shock absorbers, their operation can be further optimized, adapting the trailer to individual needs.

Independent suspension and maintenance-free

The KNOTT rubber torsion suspension sets standards in durability and maintenance-free operation. Based on a solid, uniform axle with rubber rollers, it is characterized by exceptional resistance to wear. This design eliminates the need for regular inspections and lubrication, which significantly reduces operating costs. Thanks to the use of high-quality materials, the KNOTT suspension maintains its properties even in difficult weather conditions, ensuring long-term and trouble-free operation.

Driving comfort thanks to the advanced suspension system

The suspension based on a square axle profile with rubber rollers provides effective shock absorption in all conditions. Its innovative design effectively absorbs shocks by compressing and stretching the rubber when driving over uneven surfaces, minimizing the impact of uneven surfaces on the trailer and load. This simple, yet effective operating principle guarantees a smooth ride, minimizes the risk of damage to the load and increases travel comfort, making KNOTT axles the ideal choice for demanding trailer users.

Optimum protection against corrosion

Advanced anti-corrosion protection guarantees long-term durability and aesthetic appearance. The axle profile is subjected to a hot-dip galvanizing process, which provides comprehensive protection against rust and weather conditions, even in the most demanding conditions. At the same time, the hub is protected with a high-quality KTL coating (cataphoresis), known for its excellent adhesion and resistance to mechanical damage. This two-stage surface protection method not only significantly extends the life of the axle, but also minimizes the need for maintenance, which translates into lower operating costs and reliability for many years of use.

Maintenance-free bearings and easy assembly

The axles feature advanced compact bearings as an integral part of their reliable system. These precision-engineered components combine high durability with ease of maintenance, offering optimum performance in a variety of operating conditions. These bearings are factory-lubricated and sealed, eliminating the need for regular maintenance and adjustments. With their combination of durability, maintenance-free operation and reliability, compact bearings significantly contribute to the overall safety and reliability of the axle.
