DROMET type B oval clamp M10 23×41mm
DROMET type B oval clamp M10 23×41mm

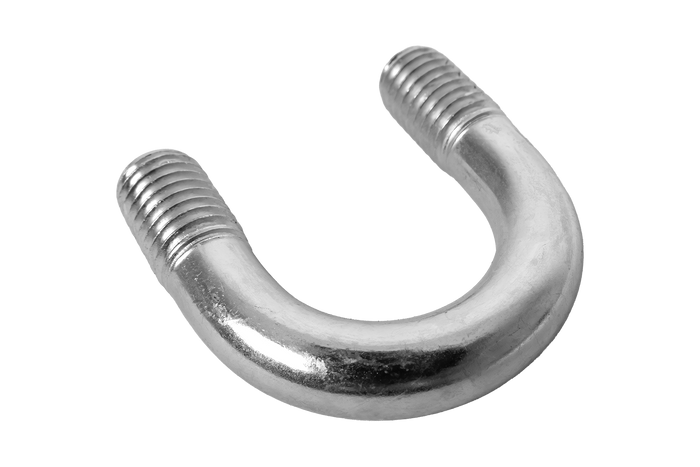

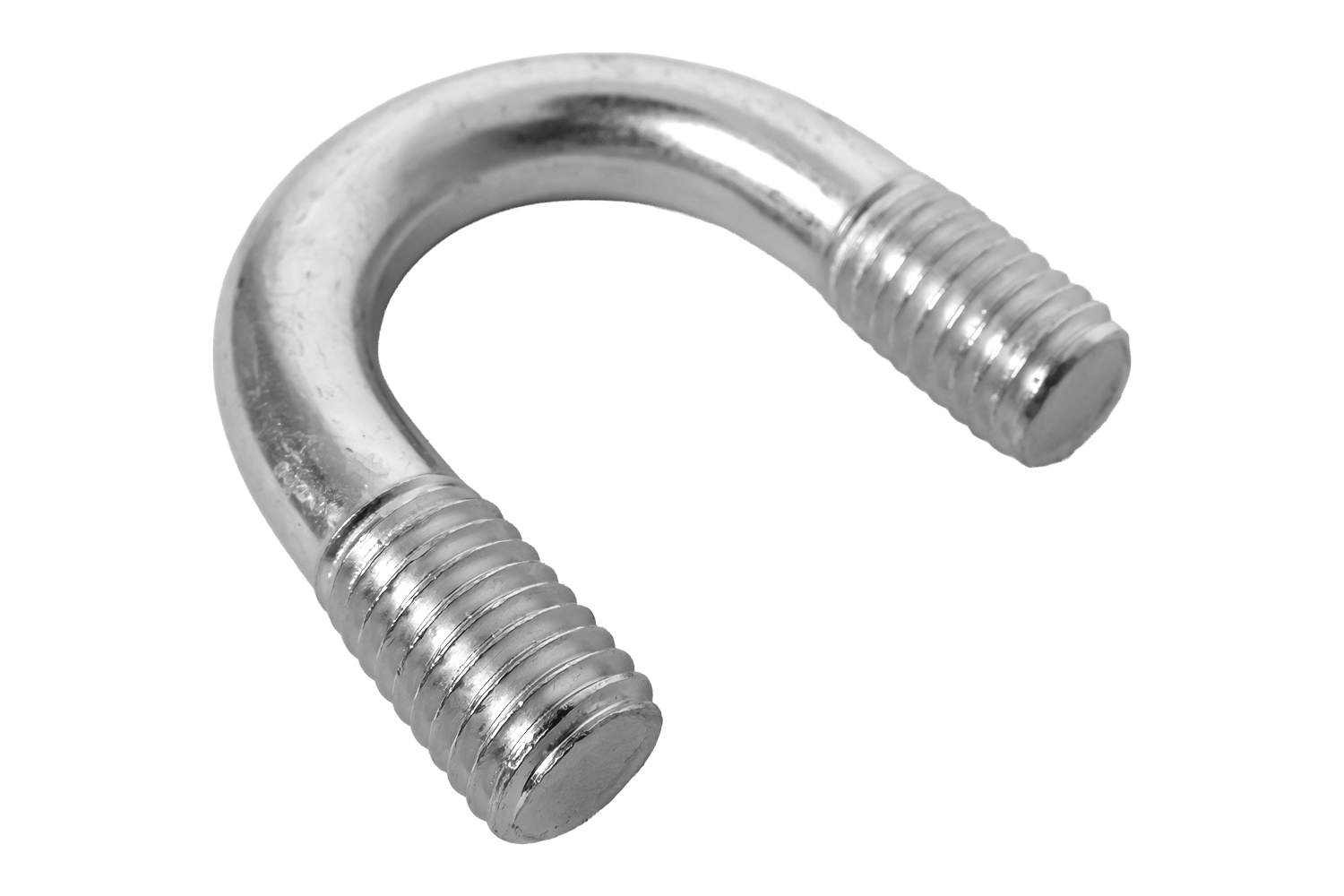

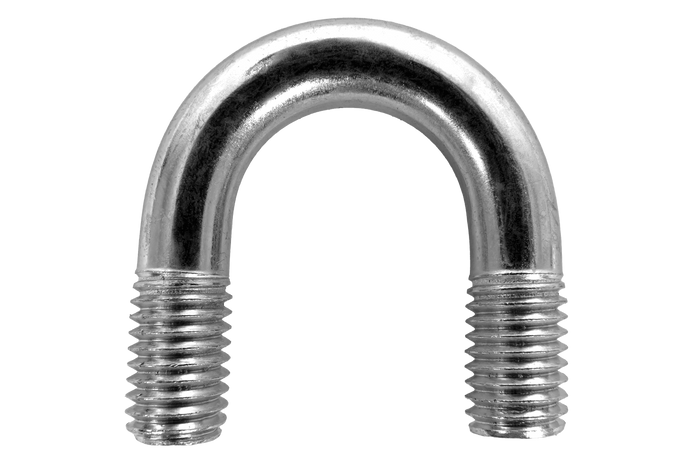

The DROMET M10 23x41 mm U-bolt (Type B) is an oval steel clamp designed for creating durable clamp connections. Its rounded shape evenly encloses the fastened element and holds it firmly in place. The U-shaped design and two threaded ends allow for quick and secure assembly using appropriate nuts.

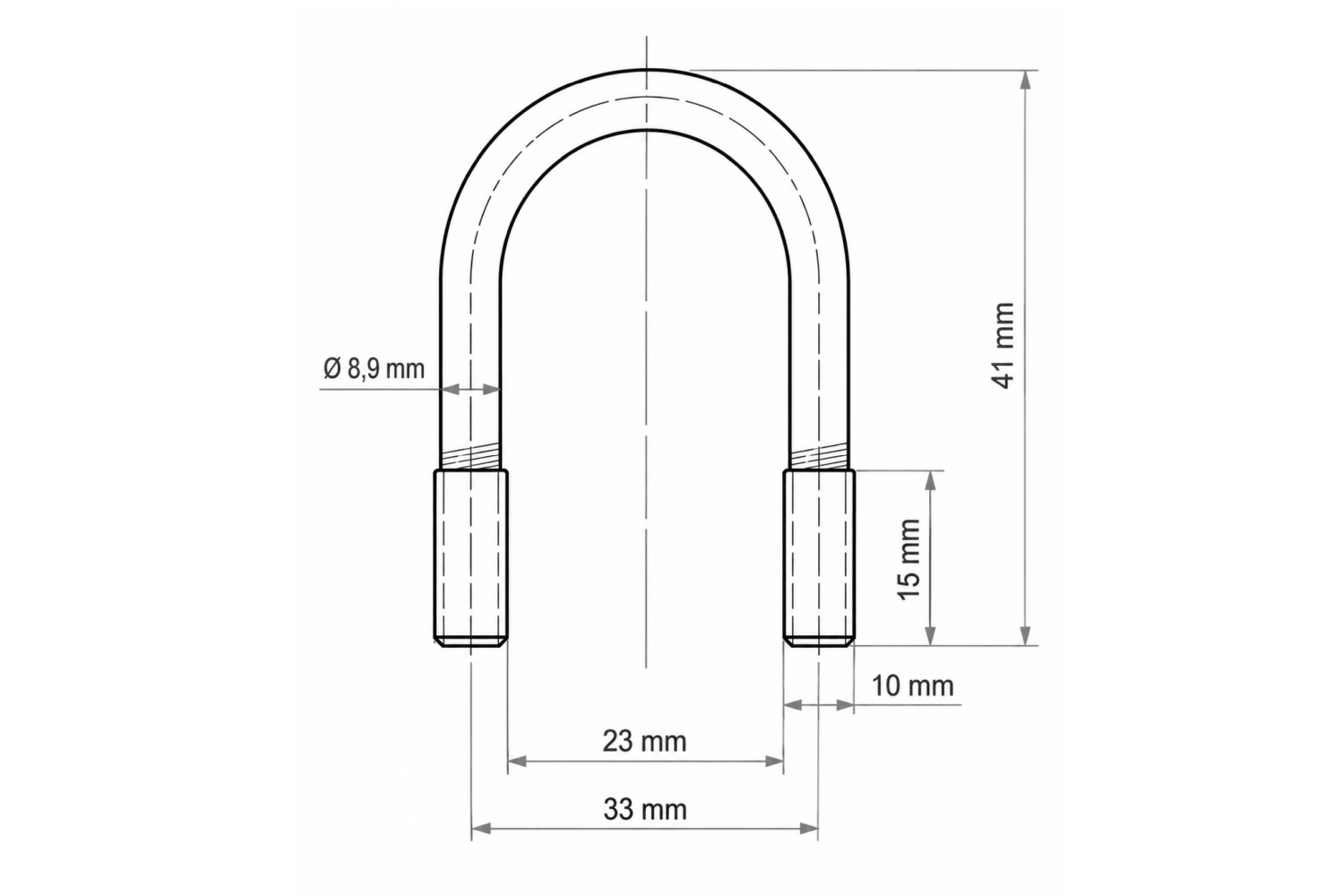

This model has an M10 thread , a total height of 41 mm , and an internal width of 23 mm . It is made of 8.9 mm diameter rod, and the threaded section is 15 mm long. Two threaded ends allow for proper clamping and a stable connection.
The clamp's surface is electrolytic zinc- plated, which increases resistance to corrosion, moisture, and weathering. Its simple design facilitates both assembly and disassembly during service or when replacing attached components.
Oval, U-bolt type B clamps can be used in a variety of technical and construction applications. They are suitable for securing pipes, rods, and rounded elements , as well as trailers, industrial and agricultural machinery, steel structures, and technical installations. Before installation, select the clamp size appropriately for the dimensions of the component being fastened.
