Automatic roof fan PUNDMANN PLUS FAN for camper with lighting, roller blind 400×400mm

Automatic roof fan PUNDMANN PLUS FAN for camper with lighting, roller blind 400×400mm

The PUNDMANN PLUS FAN 78724 is an automatic roof fan with a transparent dome, designed for campers and caravans . The device combines the functions of a roof light, ventilation, LED lighting, and sunshade, ensuring comfort during travel and stopovers. With a standard installation size of 400 x 400 mm, it fits popular roof openings found in RVs.

The fan operates on 12V and allows for two-way air exchange— it can blow fresh air into the interior or expel hot, humid air to the outside . The special dome design allows for ventilation even during rain and driving, reducing the risk of water getting inside the vehicle. Quiet operation from 29 dB and an airflow of up to 3000 m³/h make the PLUS FAN especially effective in summer and during longer stops.

This model is equipped with an integrated thermally insulated blackout blind , mosquito net , and LED lighting . Control is via a radio remote control or touch panel. Users can adjust the fan speed, rotation direction, temperature, dome opening and closing, and the LED light.

Key advantages and functionalities:

• Two-way 12V ventilation (Supply and Exhaust): the device allows for complete control over air circulation. It can efficiently draw in fresh air from outside or rapidly extract hot, humid air from inside the vehicle (e.g., while cooking or bathing).
• Unmatched efficiency and quiet operation: advanced design ensures powerful airflow of up to 3000 m³/h (cubic meters per hour), guaranteeing rapid air exchange while maintaining high operating silence.

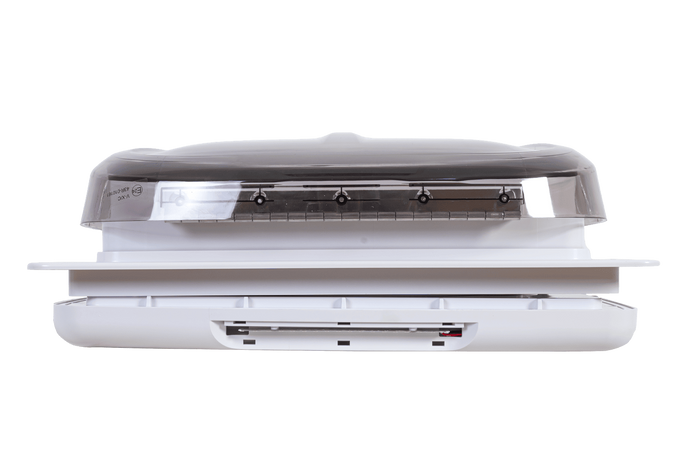

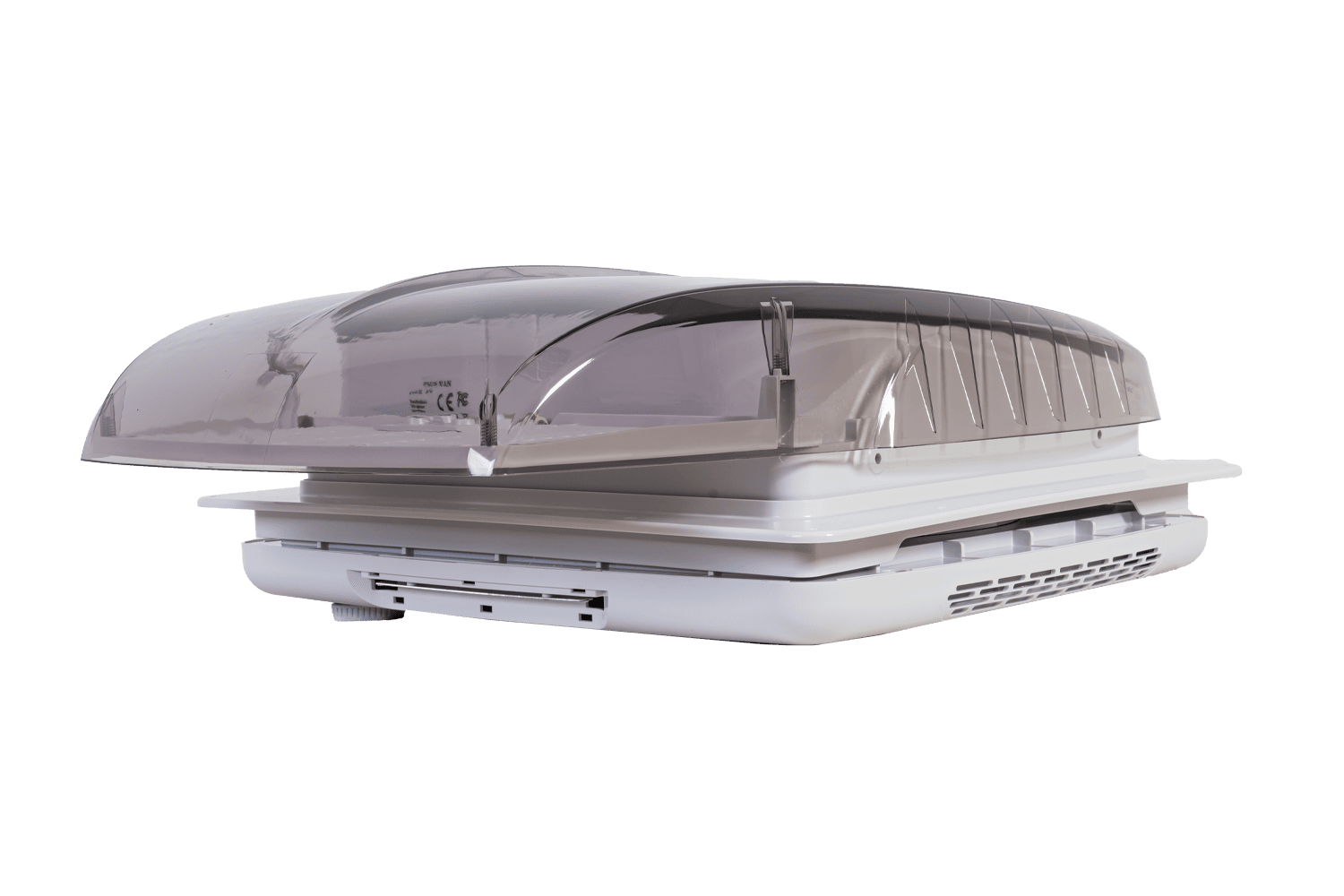

• use in rain and driving: a specially designed, aerodynamic, transparent dome allows safe use of the fan while traveling on the highway and during heavy rain - without the slightest risk of flooding the interior of the camper.
• integrated pleated blind and mosquito net: the inner frame houses a smoothly operating mosquito net that protects against insects and a pleated blackout blind with a thermal insulation layer that effectively reduces the interior heating on hot days.

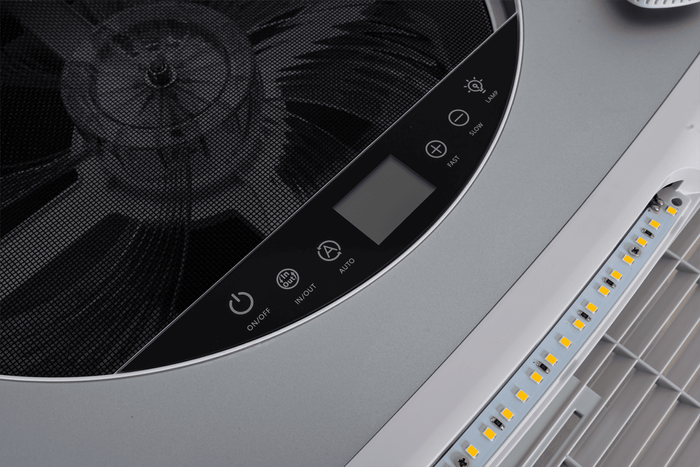

• Radio remote control and touch panel: Full comfort of operation from anywhere in the vehicle thanks to the long-range radio remote control and intuitive touch panel on the housing. Control the speed, rotation direction, automatic temperature, dome opening level, and lighting.
• Built-in LED lighting: the integrated LED strip acts as the main or ambient light source in the living area, eliminating the need for additional ceiling lights.

Parameters:

• mounting hole dimensions: 400 × 400 mm
• ventilation hole diameter: 355 mm
• roof thickness: 27–80 mm
• nominal voltage: 12 V
• operating voltage: 9–16 V
• protection class: IPX4
• quiet operation: from 29 dB
• net weight: 4.7 kg
• box dimensions: 605 × 445 × 200 mm
• accessories: roller blind, mosquito net, LED, radio remote control, control panel, mounting kit (screws, seals, remote control holder, batteries)

PLUS FAN is a practical solution for camper and caravan owners who want to improve air circulation, reduce interior heating and increase travel comfort in one modern device.
