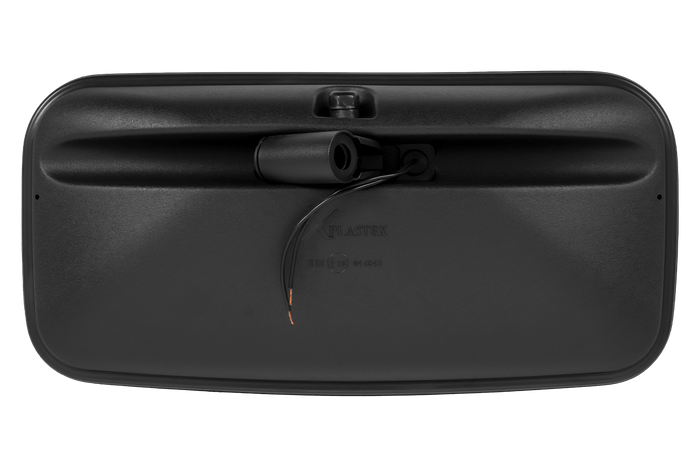

Heated side mirror PLASTEX LP0350E for agricultural machinery 361x178mm

Heated side mirror PLASTEX LP0350E for agricultural machinery 361x178mm

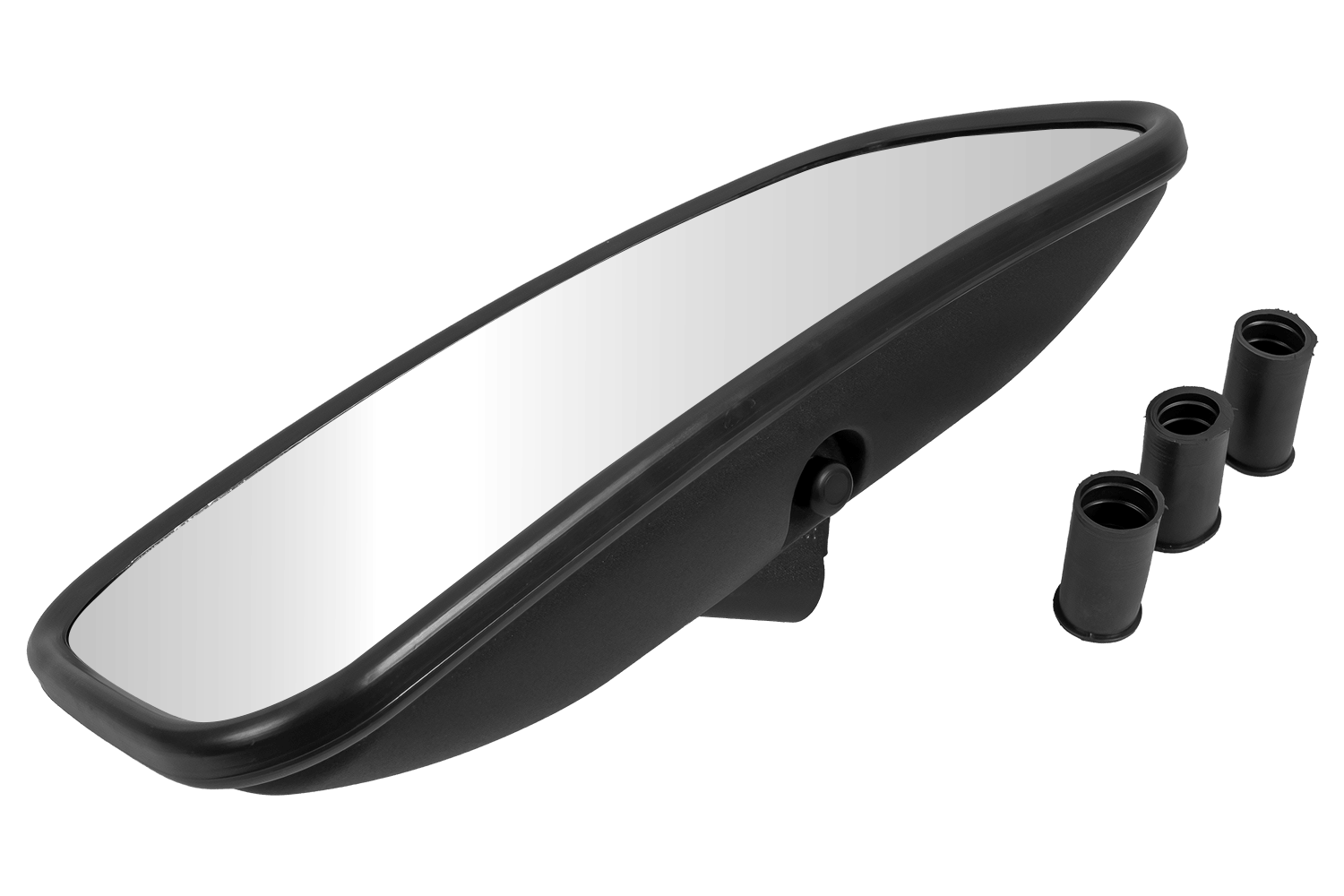

The LP 0350E (R1200) electric mirror from Plastex is a heated, 24V model designed for a wide range of commercial vehicles. It can be used on trucks, buses, agricultural tractors, and other specialized equipment equipped with a compatible mounting bracket.

The rectangular mirror surface, measuring 361 x 178 mm, provides a wide field of view and makes it easy to see around the vehicle. One of the most important features of this model is the built-in 24V heating system , which helps maintain the mirror surface at the right temperature during operation in difficult weather conditions.

Heating reduces condensation and accelerates the removal of frost, ice, and moisture from the mirror surface. This allows the driver to regain clear visibility more quickly after starting the vehicle and allows for more efficient use of the mirror when driving on cold, rainy, or winter days. This feature is particularly important for trucks, buses, and agricultural machinery operating outdoors for long hours, where weather conditions can often make it difficult to see the surroundings.

The mirror has a universal mounting point , so it can be mounted on either the left or right side of the vehicle. It is also suitable for left- and right-hand drive vehicles.

The PP housing is suitable for everyday use in transport and agricultural environments. The mirror is compatible with mounting brackets with diameters of 15, 18, 20, 22, and 32 mm , making it easy to fit to various types of arms and brackets.

Before purchasing, please compare the part number, dimensions, bracket diameter, mounting method and compatibility of the 24V electrical system with the component installed in the vehicle.

Technical parameters:

• dimensions: 178 x 361 mm
• mounting bracket diameter: 15, 18, 20, 22, 32 mm
• type: heated mirror
• shape: rectangular
• material: PP
• mounting side: universal (left/right)
• steering system: left-hand/right-hand

Compatibility – Trucks:

• IVECO
• VOLVO
• Mercedes-Benz 1913 2644 years: 08/73–12/86
• EVO BUS D 303, 404, 405, 407
• buses and minibuses,
• other vehicles with a compatible mounting bracket

Compatibility – agricultural tractors:

• Ursus: C-330, CX-335, C-360, C-385, U-912, U-1012, U-1014, U-1201, U-1204, U-1214, U-1614, U-1634
• MTZ Pronar: 82A, 825A
• Claas Renault: 133.54
• Massey Ferguson: 6180, 397T
• Ursus: 10014H
• Pronar: P10 6170, P7 5222, P5 5236, P5 5235, 1221A
• Marshmallow: 90, 90K, 85, 85K
• Pronar III: 82SA-III, 82TSA-III, 102SA-III
• Pronar II: 82A-II, 82SA-II, 82TSA-II, 102SA-II, 1221A-II
• Farmtrac: 7110DT
• Fendt 200 Vario
• Renault: 180.94, TEMIS-630 Z, TZ 110.54, ARES 550RX, 11054, 160-94 TZ, TX 145.14, TEMIS 650Z, 133.14
• Case IH Farmall: A, C, JX

Comparison numbers:

• OE: 381 810 73 16
• OE: 381 810 26 16
• OE: 000 810 23 16
• OE: 301 810 21 16
• OE: 314 810 26 16
• OE: 673 810 42 16
• OE: 1697926
