Bearing for trailer brake drum KNOTT 410250.001 160x35 200x50 waterproof

Bearing for trailer brake drum KNOTT 410250.001 160x35 200x50 waterproof

The KNOTT 410250.001 Waterproof Compact Bearing Kit is a professional hub repair kit for KNOTT trailer axles. This waterproof version is designed for use in demanding conditions, particularly on boat trailers, flatbed trailers, and utility trailers exposed to water, moisture, sand, and road salt.

A bearing dedicated to KNOTT axles with a gross vehicle weight (GVW) of 1350 kg and 1500 kg . Commonly used in branded boat trailers, flatbed trailers, and high-quality cargo trailers.

The kit includes a double-row compact angular contact bearing measuring 34 x 64 x 37 mm. The bearing is factory-sealed and grease-filled, making it ready for installation and requiring no additional lubrication. The double-row design provides high resistance to vertical loads and lateral forces generated during driving, maneuvering, and cornering.

The waterproof version features a special seal that limits the ingress of water and contaminants into the bearing. This is especially important in boat trailers, where the hub may come into contact with water during launching. Proper protection helps reduce the risk of corrosion, grease washout, and premature bearing wear .

Parameters:

• type: compact, double-row, angular contact bearing
• outer diameter: 64 mm
• inner diameter: 34 mm
• width: 37 mm
• properties: waterproof
• application: KNOTT axles 1350 kg and 1500 kg

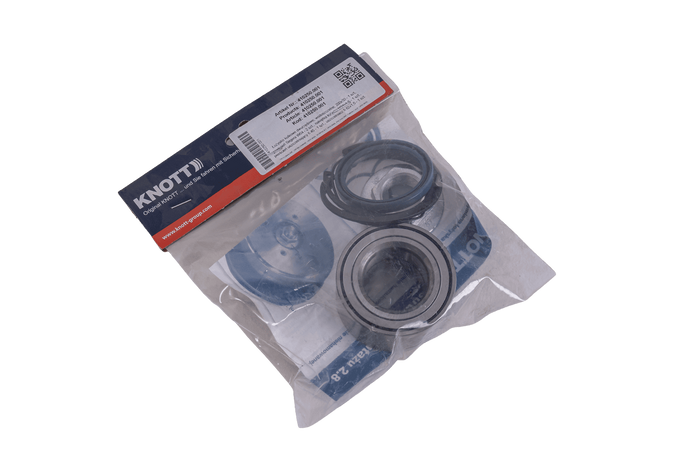

Set contents:

• 1× compact bearing
• 1× shaft seal / simmerring

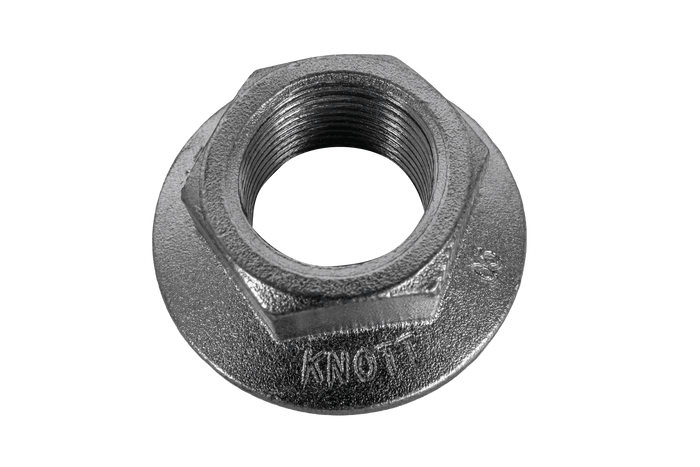

• 1× self-locking flange nut M24×1.5
• 2× Seeger retaining rings
• 1× O-ring

The kit contains the components necessary for proper hub bearing replacement. For installation, use appropriate tools, preferably a hydraulic press, and press the bearing in, applying pressure only to the outer ring. The flange nut is a disposable item and should be replaced every time the bearing is replaced.
