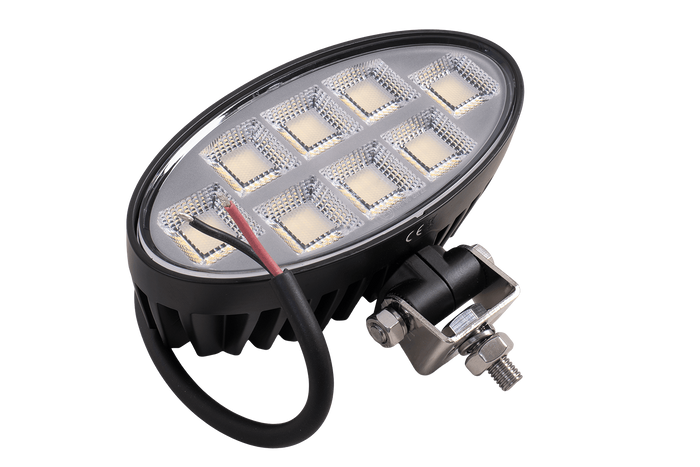

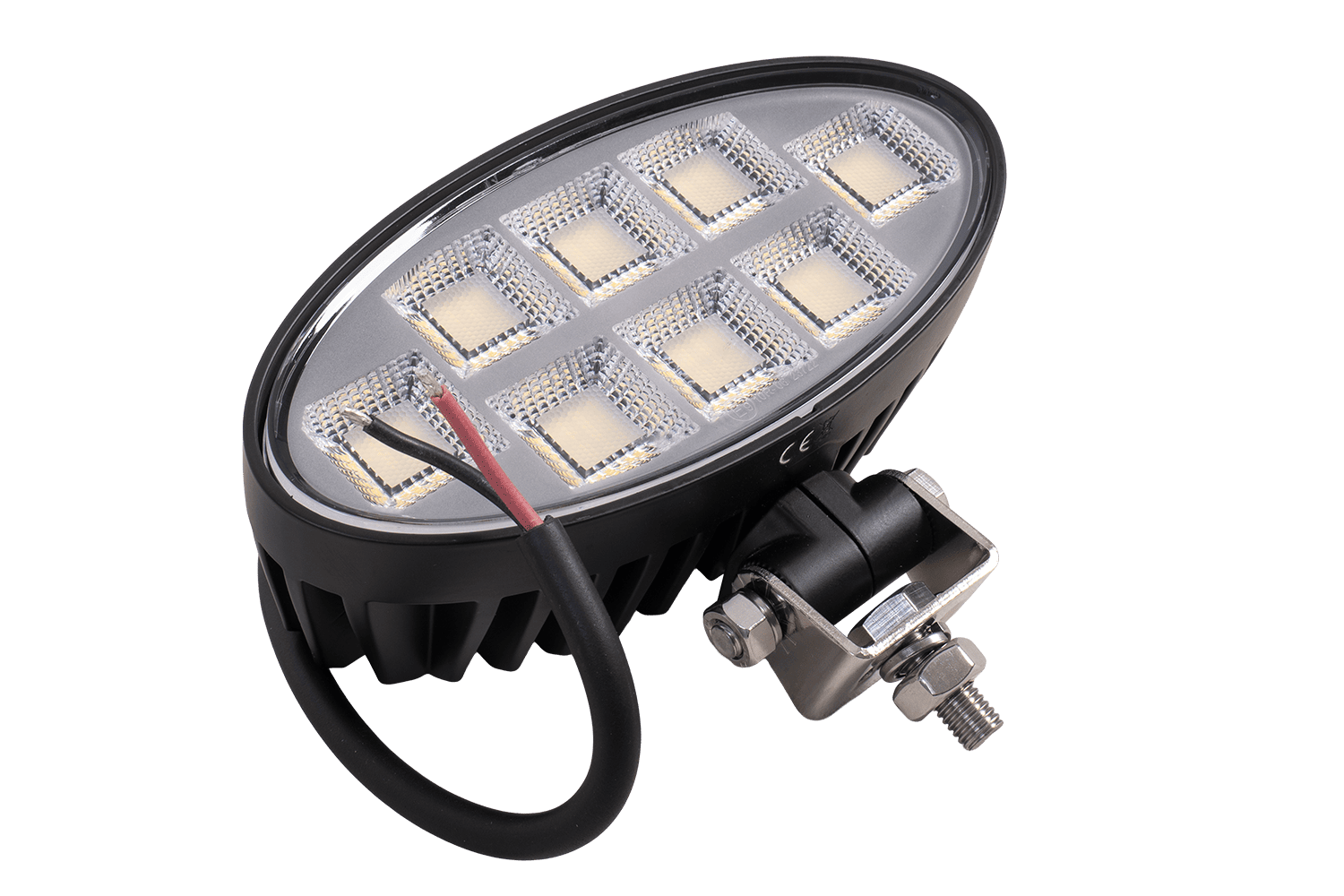

LED work lamp reflector TT TECHNOLOGY BLACK TT.13417 160xLED 8900lm oval
LED work lamp reflector TT TECHNOLOGY BLACK TT.13417 160xLED 8900lm oval

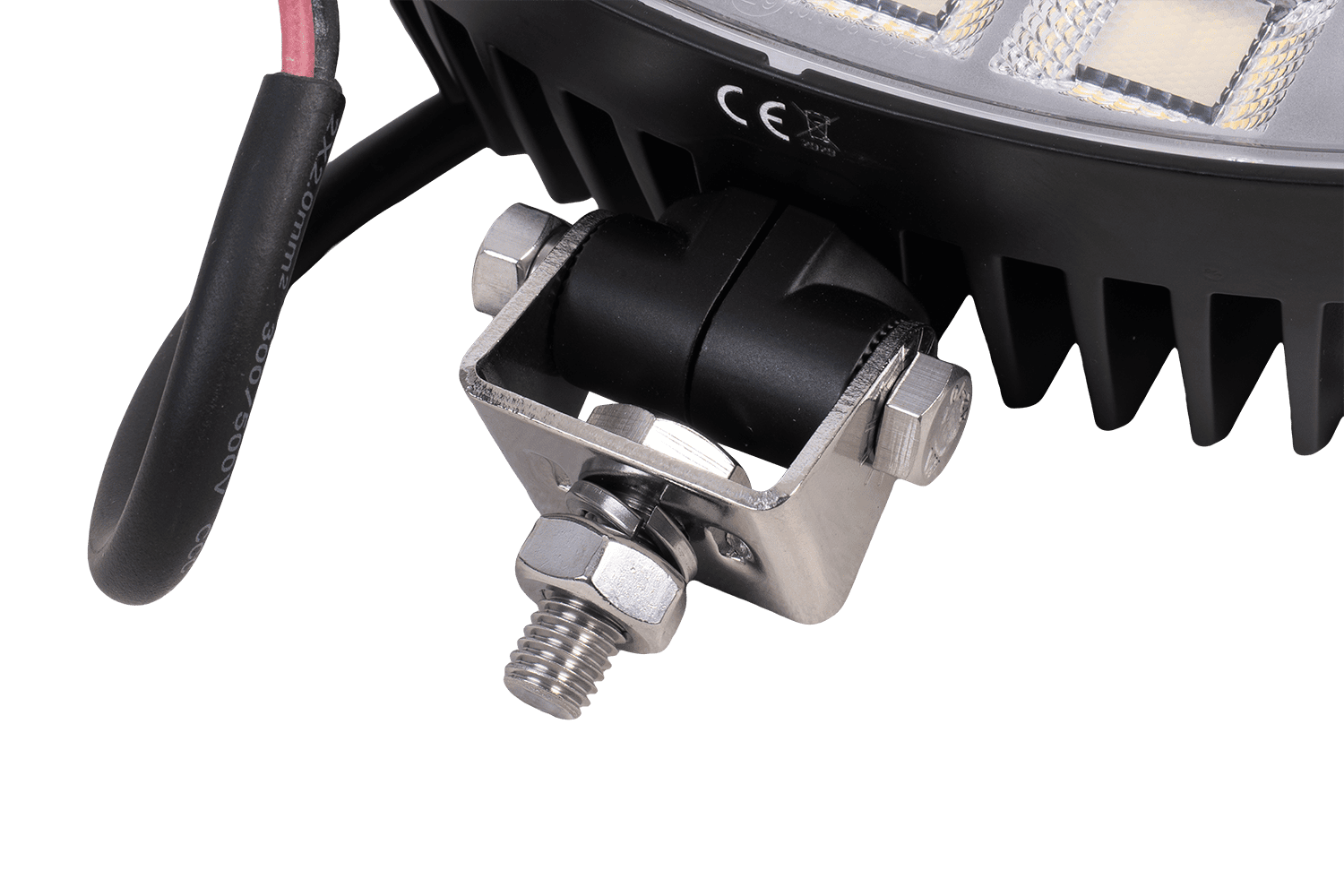

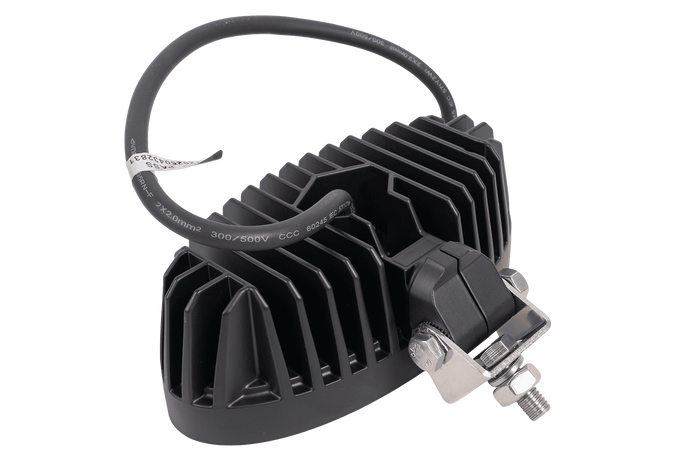

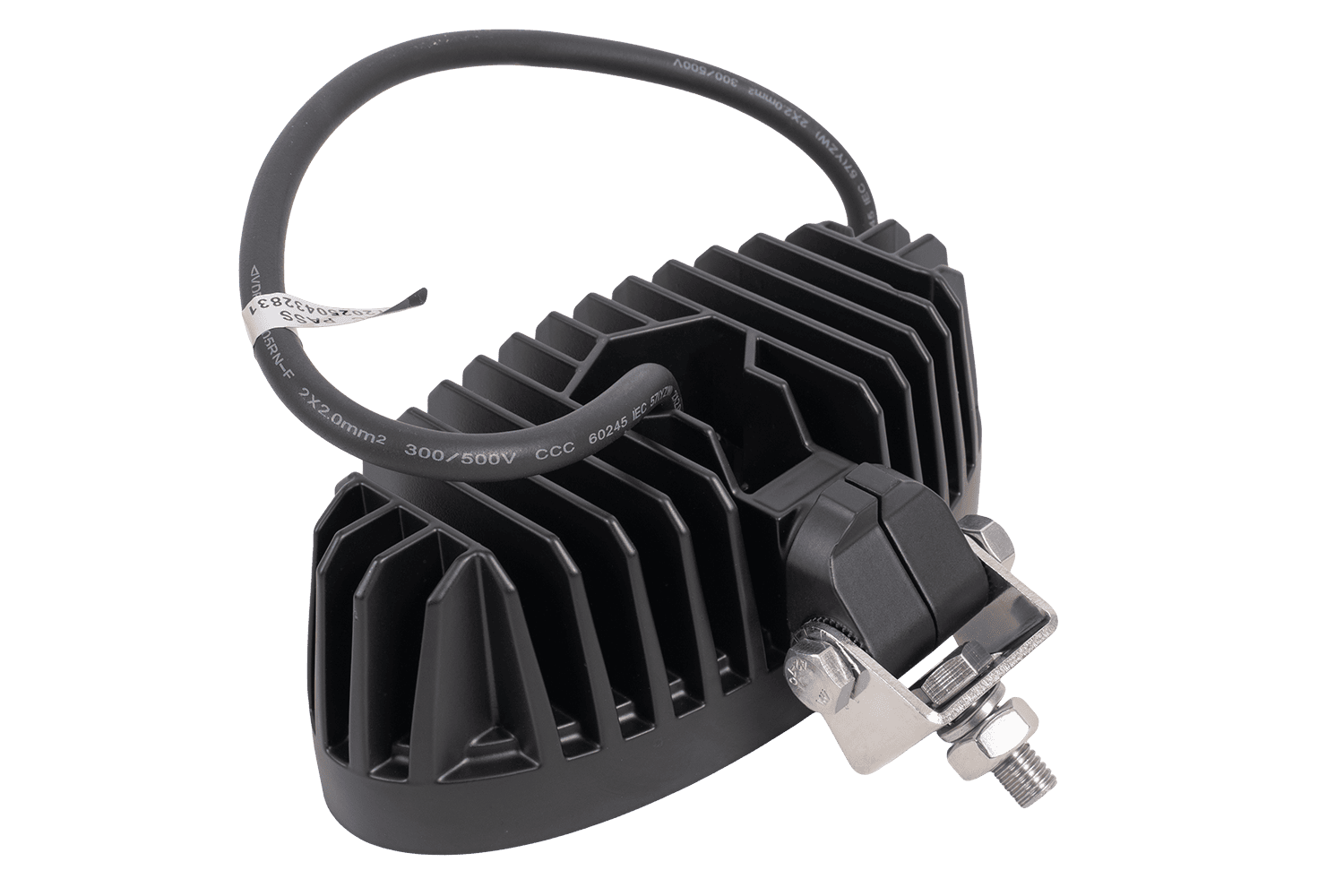

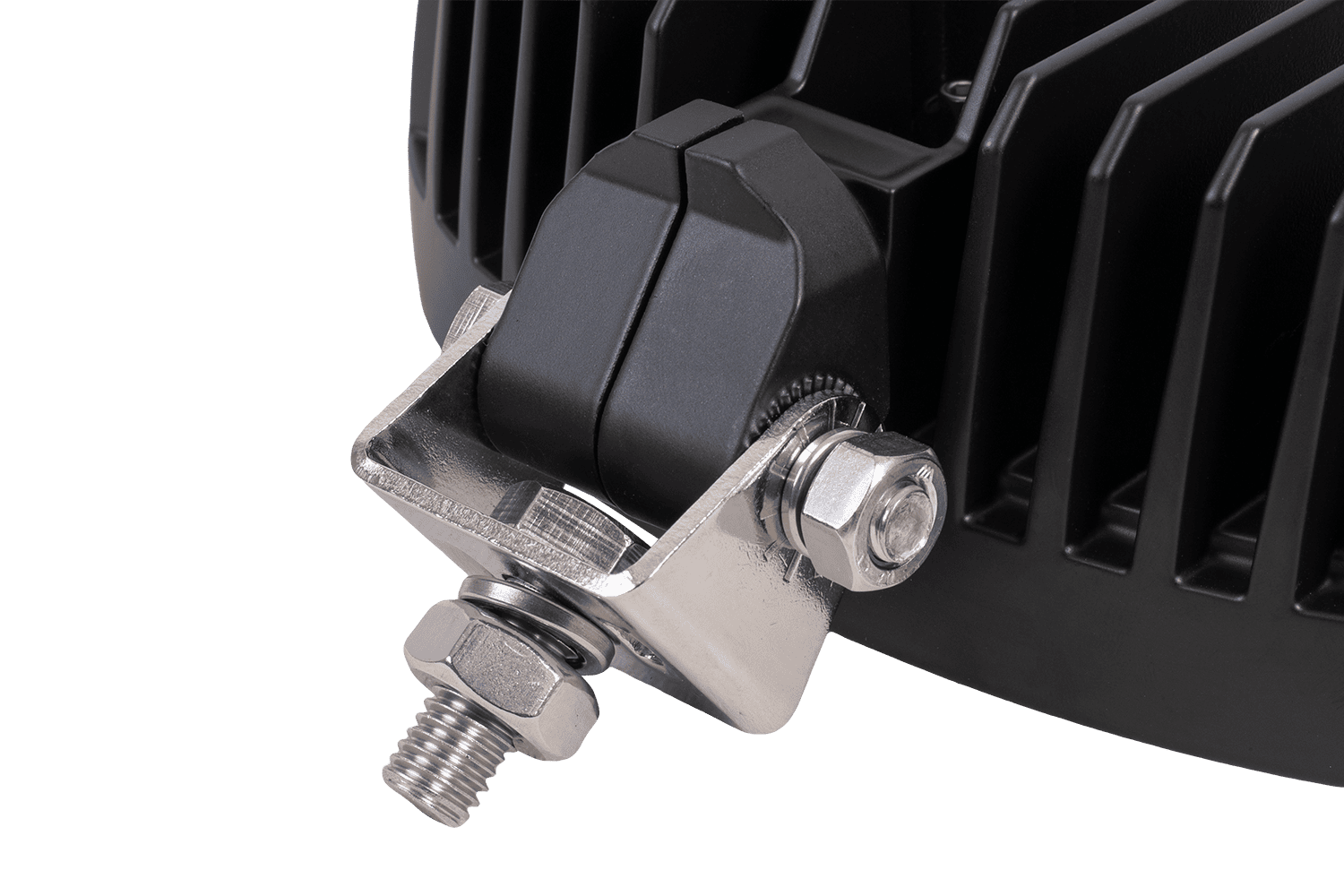

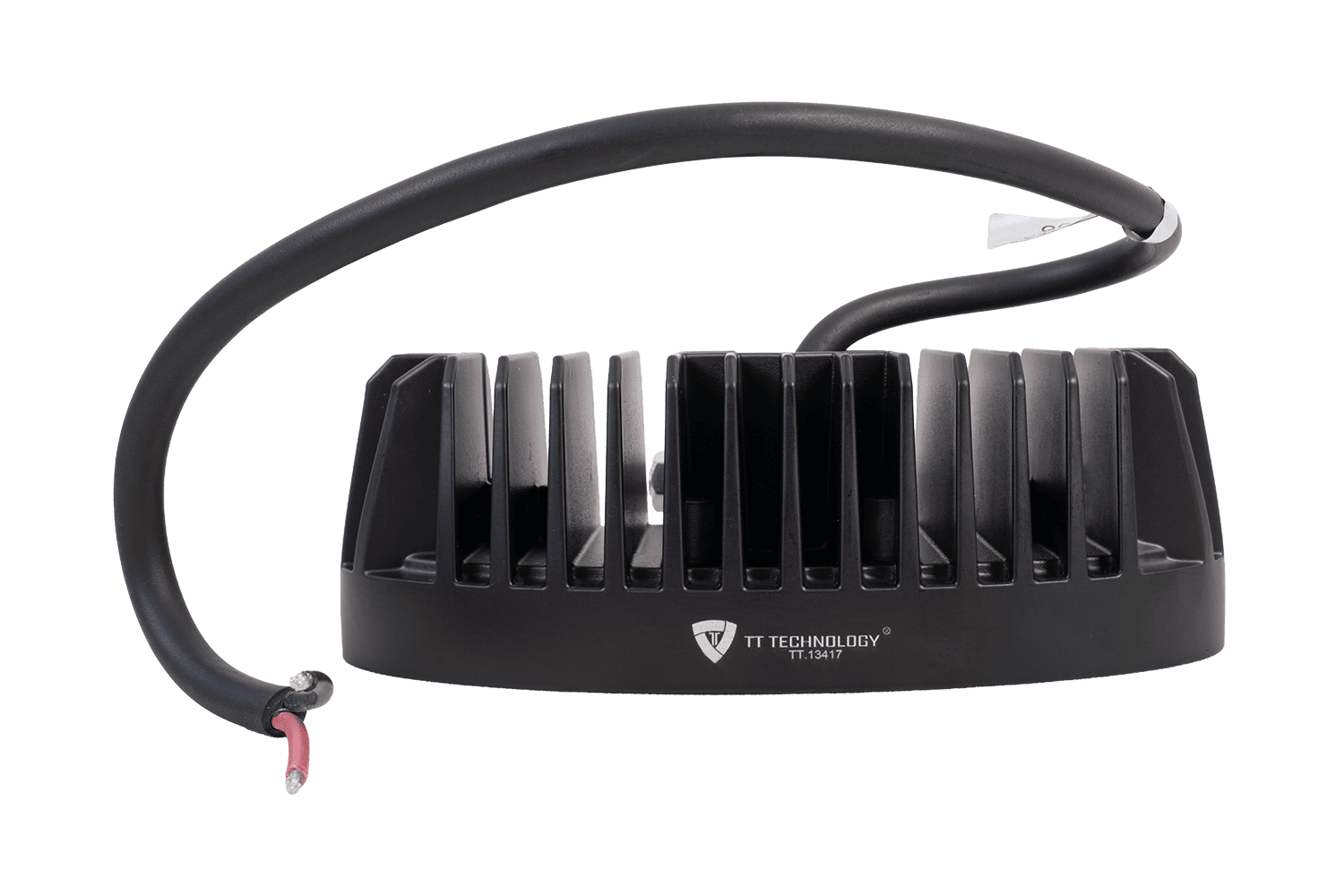

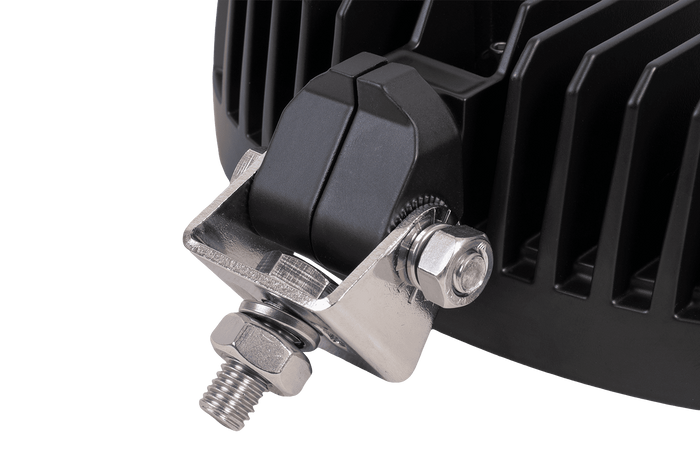

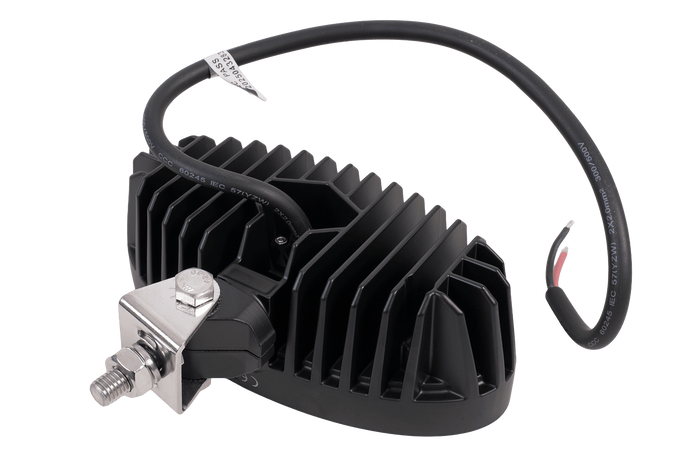

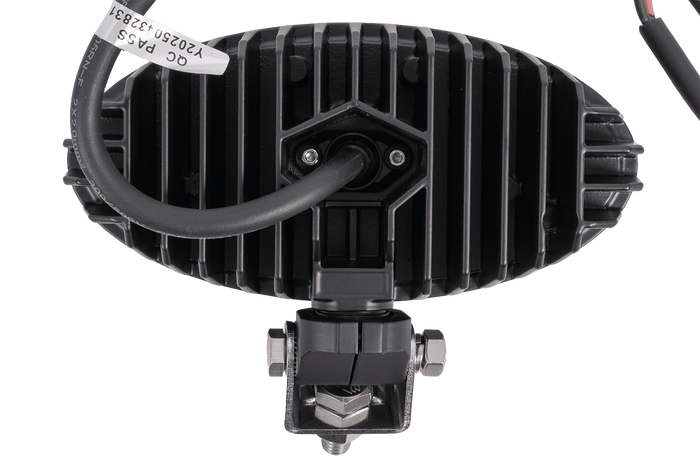

The TT.13417 work lamp from the BLACK series by TT TECHNOLOGY is a universal LED light source designed for use in harsh environments. It's ideal for commercial vehicles, agricultural, construction, and off-road machinery, as well as boats and as additional lighting for buses and trucks. It features a robust design measuring 178 mm wide, 120 mm high, and 60 mm deep , and operates within a 10-30 V voltage range. A 0.45 m cable allows for easy installation and connection, even in hard-to-reach areas. The 80° beam angle ensures wide and even illumination of the space, while the swivel mount allows for precise positioning of the lamp in the desired direction.

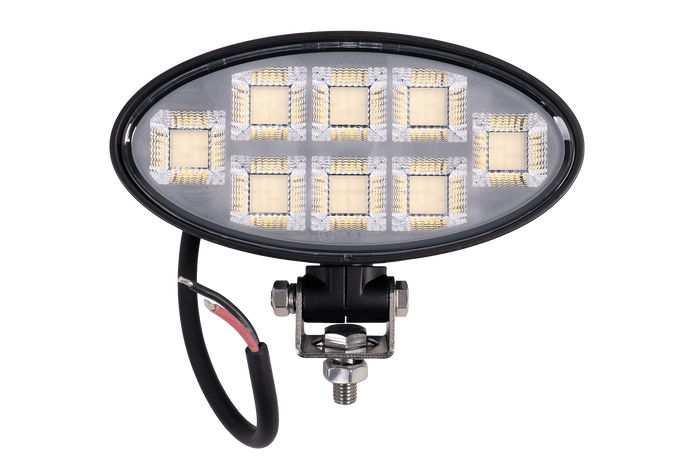

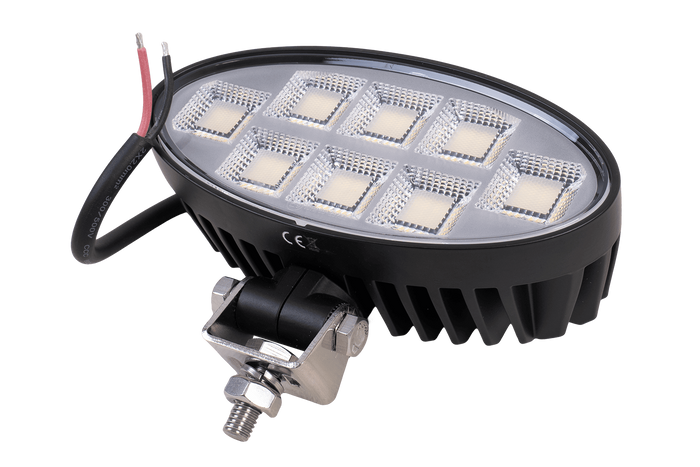

The lamp is equipped with 160 OSRAM LEDs, each with a power output of 160 W and a brightness of 8,900 lumens . It emits a neutral white light with a temperature of 5,700 K , providing excellent visibility at night and when working in low-light conditions. The diffused lens evenly illuminates the workspace, making it ideal for precise tasks and wide-area illumination.
Tightness class
IP68/69K rated work lights provide the highest level of protection against dust and water , making them ideal for the most demanding work environments. IP68 means complete resistance to dust ingress and the ability to withstand prolonged immersion in water (over 1 meter deep), while IP69K guarantees resistance to high-pressure and high-temperature water, such as during pressure washing. These properties make the lights an ideal choice for use in commercial vehicles, trailers, agricultural, construction, and off-road machinery – anywhere reliability and durability in extreme conditions are essential.
Approvals
E9-approved work lights meet European safety and quality standards, confirming their compliance with vehicle lighting regulations. The E9 certification, awarded by Spain as the homologation country, demonstrates the passing of rigorous technical tests, including light output, durability, and operational safety . This certification allows these lights to be used in commercial vehicles, trailers, and machinery throughout the European Union, guaranteeing reliability in a variety of operating conditions.
Additionally, the lamp is CE , R10 , and RoHS certified , confirming its compliance with European Union requirements for safety, environmental protection, and electromagnetic compatibility. The CE certification demonstrates compliance with EU directives regarding health, safety, and the environment. R10 confirms that the device does not cause electronic interference and can be safely used in vehicles with electrical systems. RoHS guarantees that the lamp does not contain hazardous substances in concentrations exceeding permissible limits. Furthermore, the lamp meets the CISPR 25 Class 4 interference standard, ensuring that its operation does not negatively impact the functioning of other electronic systems in the vehicle.
Work lights are a key component of specialized vehicles such as trailers, agricultural, construction, and service machinery, providing intense illumination of the workspace. Their primary purpose is to improve comfort and safety when working at night or in conditions of limited visibility —for example, during loading, field repairs, field work, or construction. High-quality work lights are characterized by high light output and resistance to shock, moisture, and dust, making them suitable for even extreme working conditions . Their installation and proper placement significantly improve the efficiency and precision of tasks.
