UNITRAILER ALR002 foldable ramp aluminum ramp for trailer 221cm 340kg with belt

UNITRAILER ALR002 foldable ramp aluminum ramp for trailer 221cm 340kg with belt

The professional ALR002 aluminum loading ramp from UNITRAILER is designed for safely loading and unloading vehicles, machinery, and equipment onto trailers, flatbeds, vans, and transport platforms. Its aluminum construction combines high strength with lower weight than steel models, making the ramp easier to carry, set up, and store.

The ramp boasts a high load capacity of 340 kg per unit . Using two ramps, the total load capacity reaches 680 kg , allowing for loading heavier motorcycles, ATVs, lawnmowers, gardening equipment, and other equipment. The included tie-down strap provides additional security against shifting or slipping during use, increasing the stability of the entire loading process.

The foldable design allows the ramp to be reduced in length from 221 cm to 115 cm , saving space during transport and storage. It's a practical piece of equipment for workshops, farms, gardening companies, equipment rental companies, and owners of trailers, trailers, motorcycles, and quads.

Dimensions:

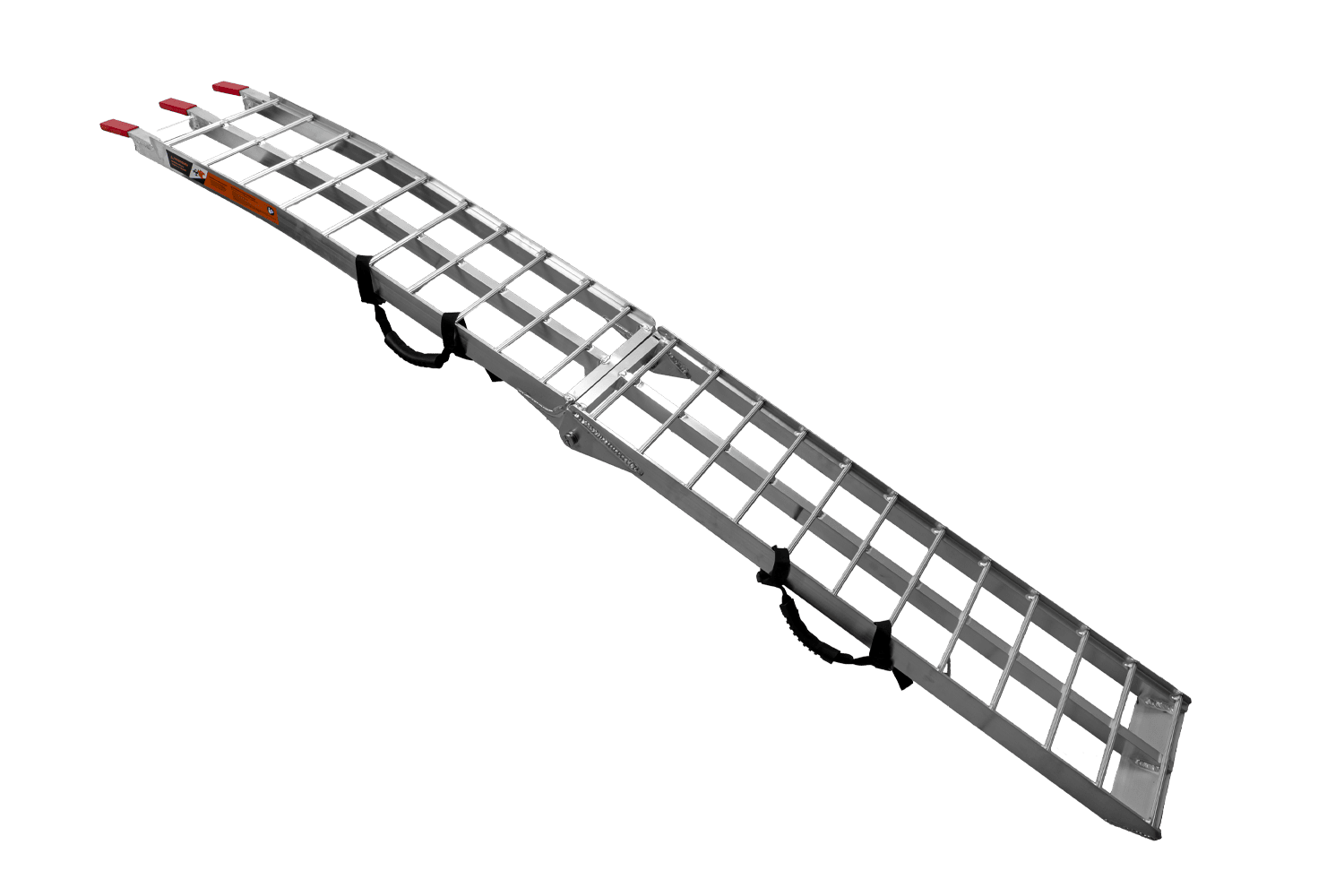

• total length: 221 cm
• total width: 28 cm
• length when folded: 115 cm
• thickness when folded: 16.5 cm

Product advantages:

• high load capacity – 340 kg per piece (when using a pair of ramps, the total load capacity is up to 680 kg ), sufficient for loading quads, motorcycles, lawn mowers, gardening machines or pallet forklifts;
• aluminum construction – ensures high durability, corrosion resistance and lower weight compared to steel ramps;

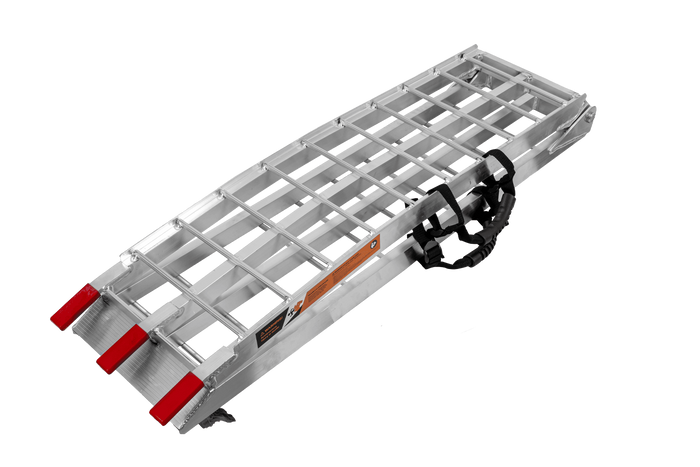

• additional securing strap – helps to secure the ramp against sliding and slipping during loading;

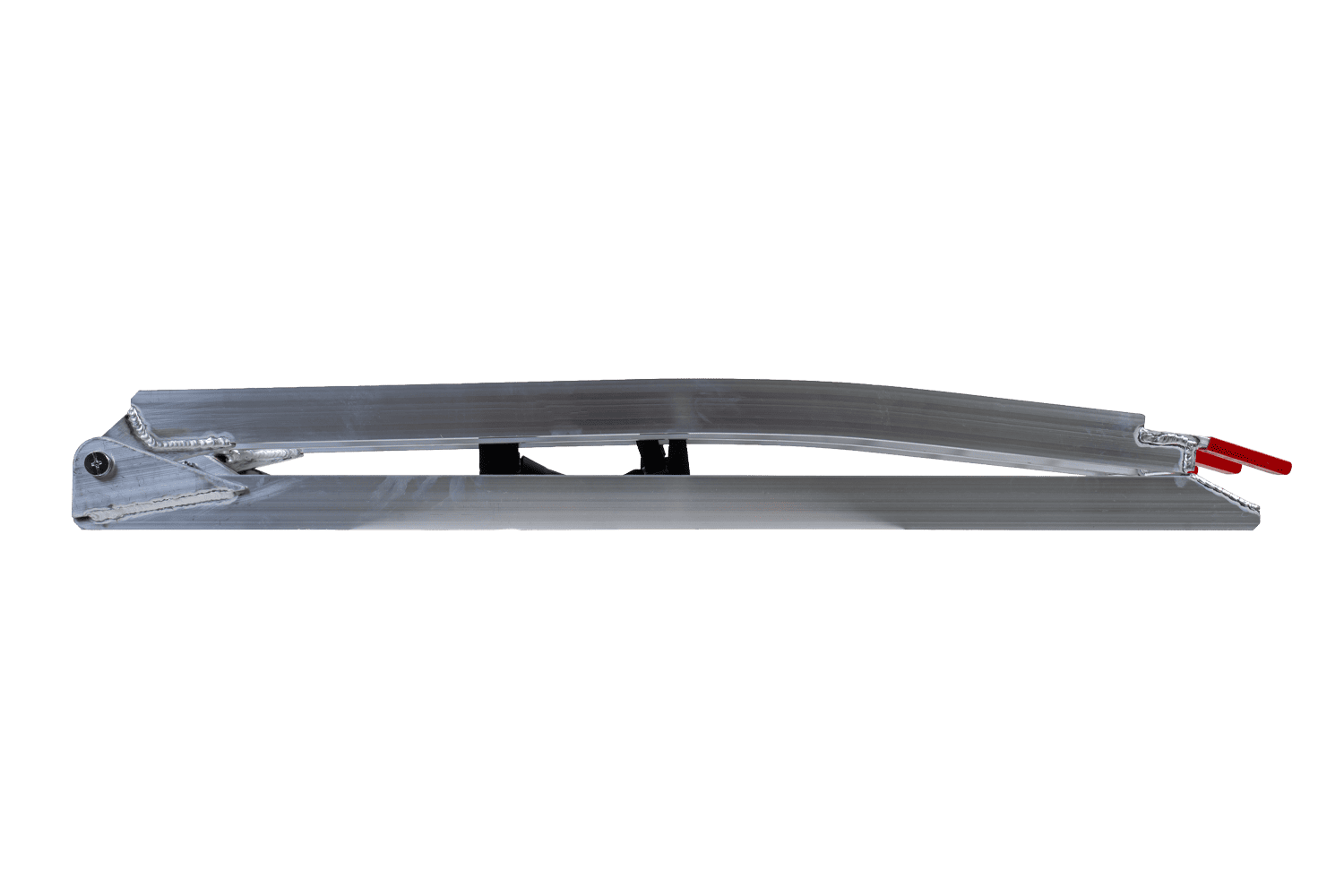

• foldable structure - when folded, the ramp is 115 cm long, which makes it easier to transport and store in the garage, trunk or on a trailer;
• universal use – the ramp can be used with most trailers, trailers, transport platforms and delivery vehicles;
• stable ramp surface – 28 cm wide and 5 cm thick ensure adequate wheel support when entering and exiting.

Application:

The access ramp is suitable for loading and unloading:

• quads, scooters and motorcycles,
• lawn mowers, gardening and agricultural machinery,
• pallet forklifts,
• other vehicles and equipment with a permissible weight compatible with the load-bearing capacity of the ramps.

The fundamental principle of safe operation of ramps is not to exceed their maximum load capacity – this is crucial for the safety of the entire load. Loading ramps should be used only for their intended purpose, and with caution, as there is a risk of slipping or sliding when approaching. It's also important to remember to place them only on a stable, level surface and properly secure them against movement, and to always adjust the ramp spacing to the axle width of the vehicle being loaded.
